MCCULLOCH DRILL RIGS
Custom Built Drill Rigs
McCullochs D&B design and build custom built, Australian made drill rigs to last in our country’s toughest conditions.
We don’t believe in one size fits all solutions. Our rigs are engineered and manufactured right here in Australia, allowing us to build a machine that’s perfectly suited to your specific requirements. We work closely with you to understand your challenges and deliver a strong, reliable, and efficient drill rig that’s built for purpose.

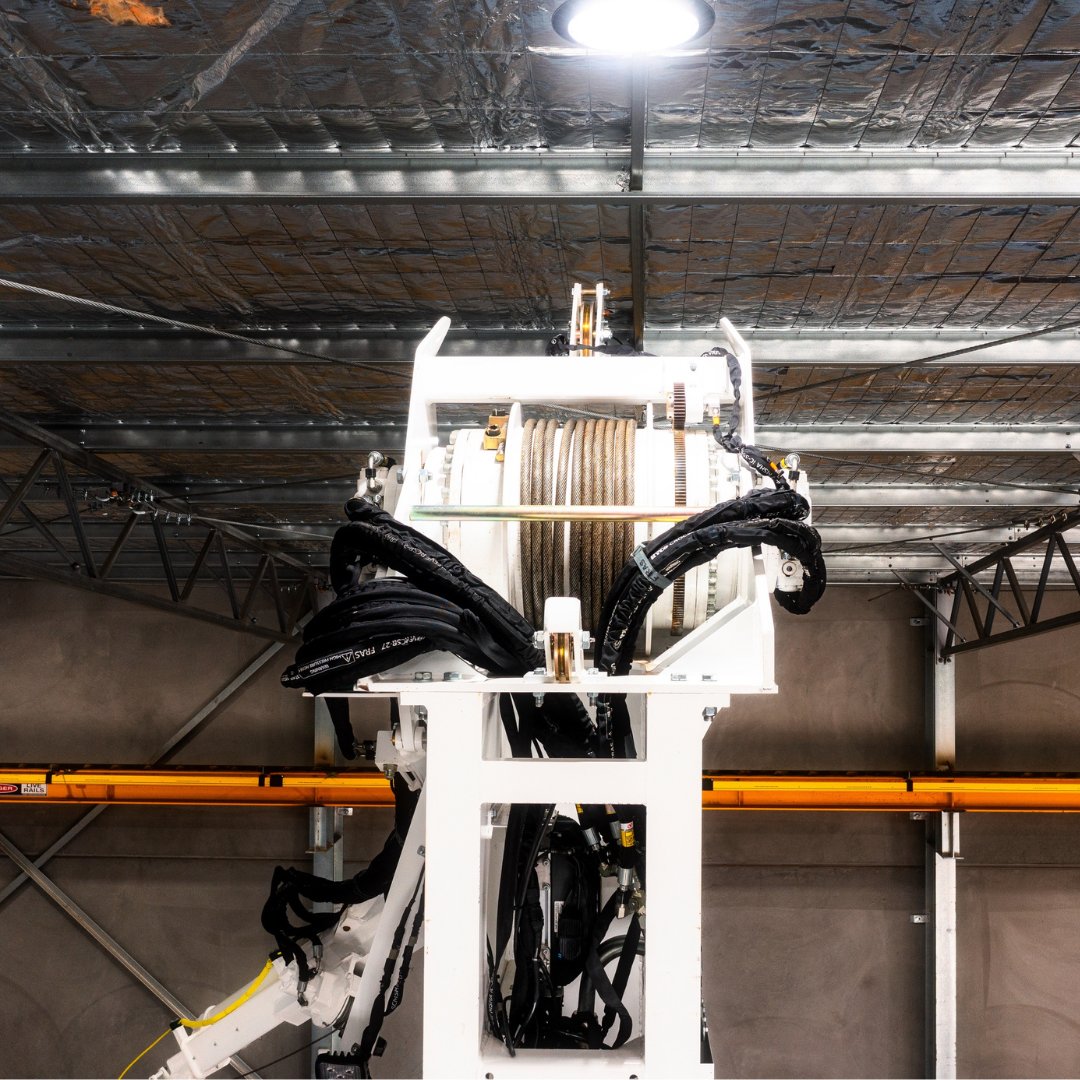

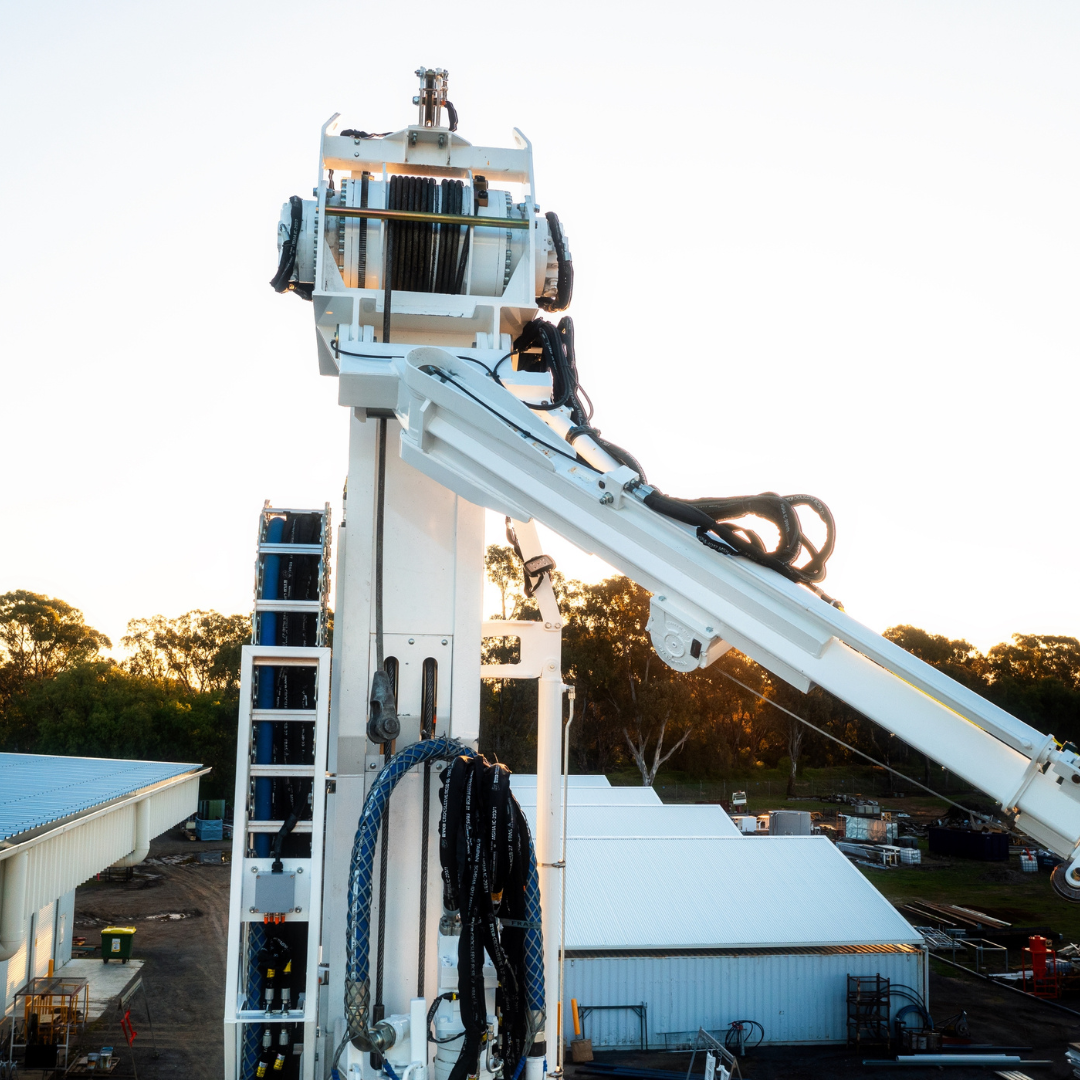

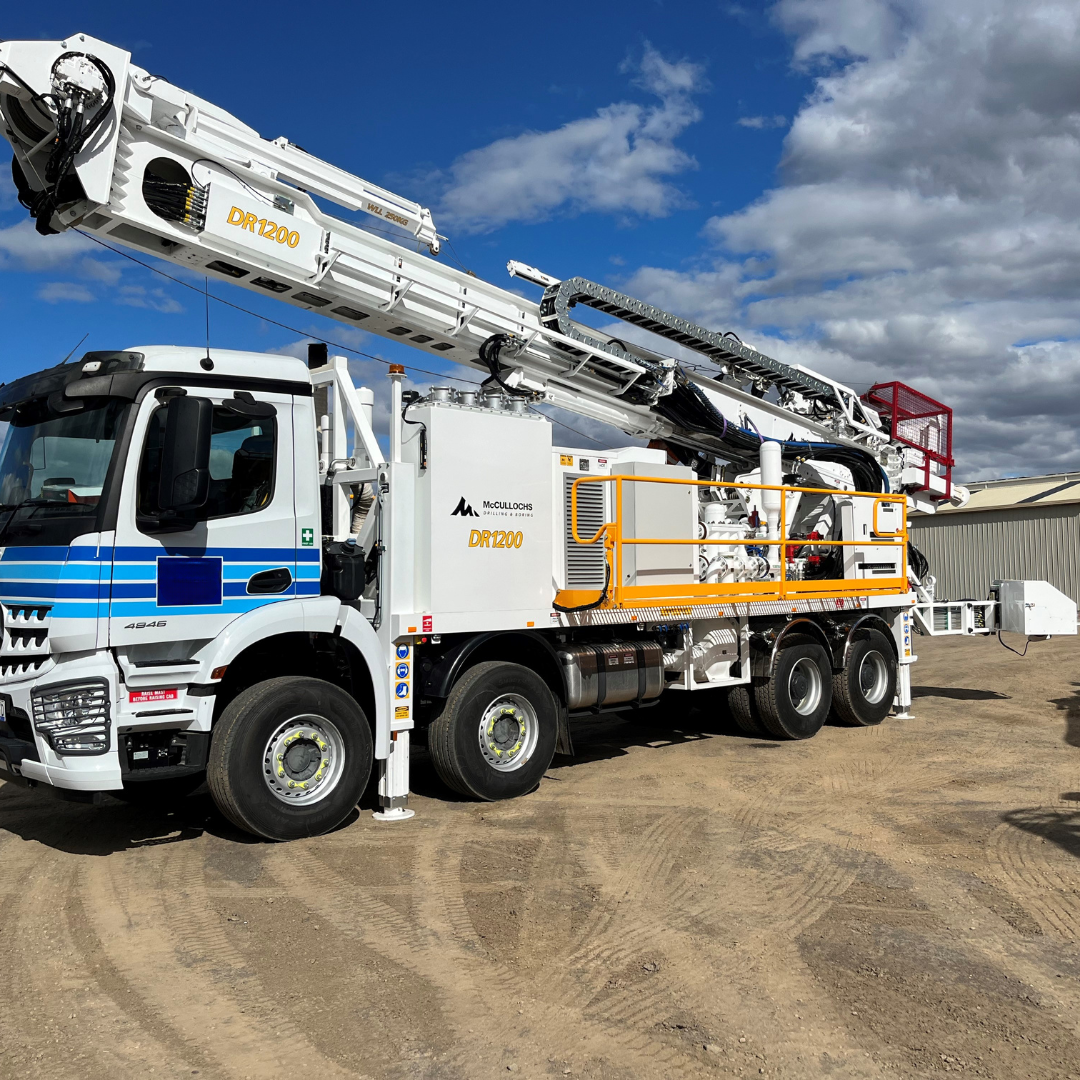

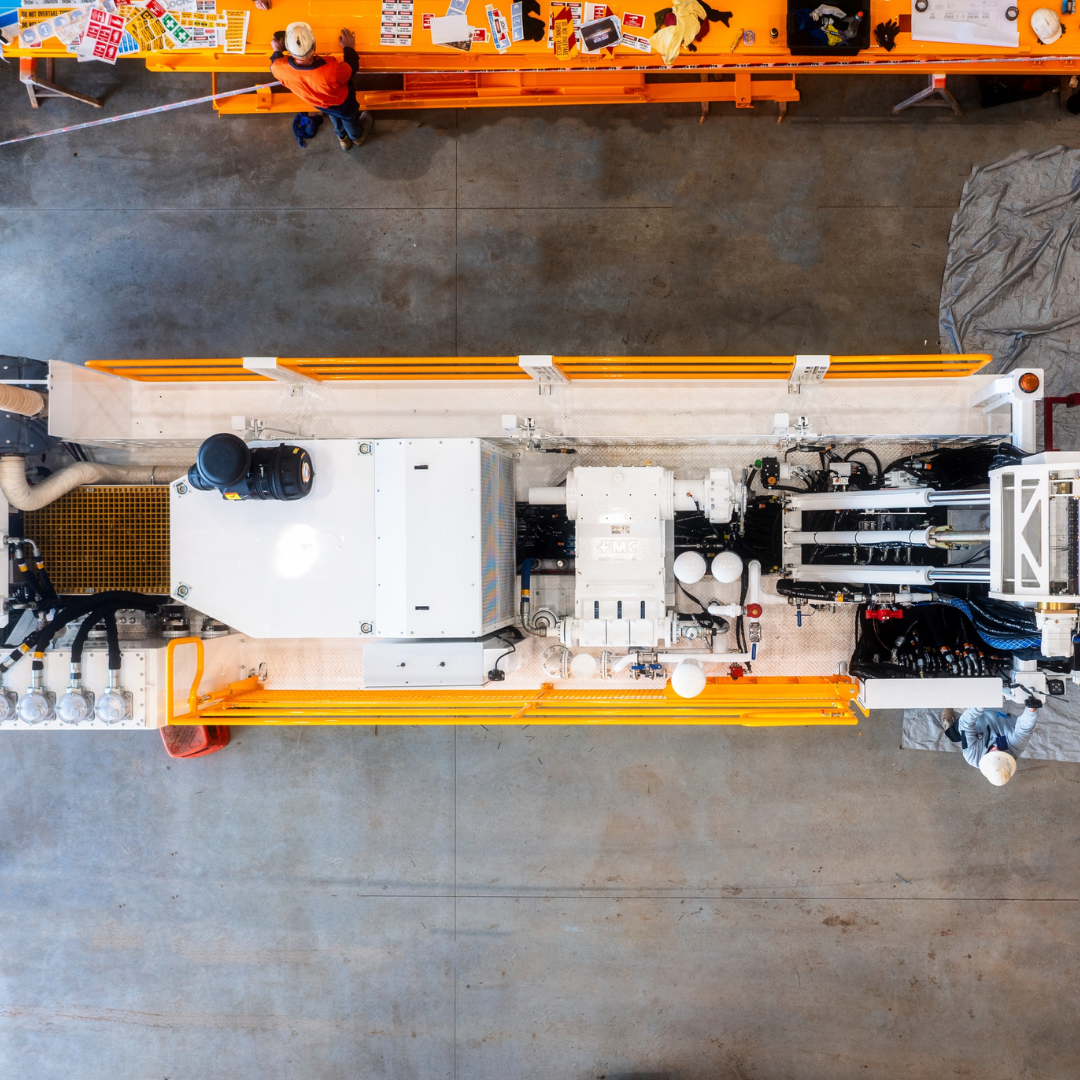

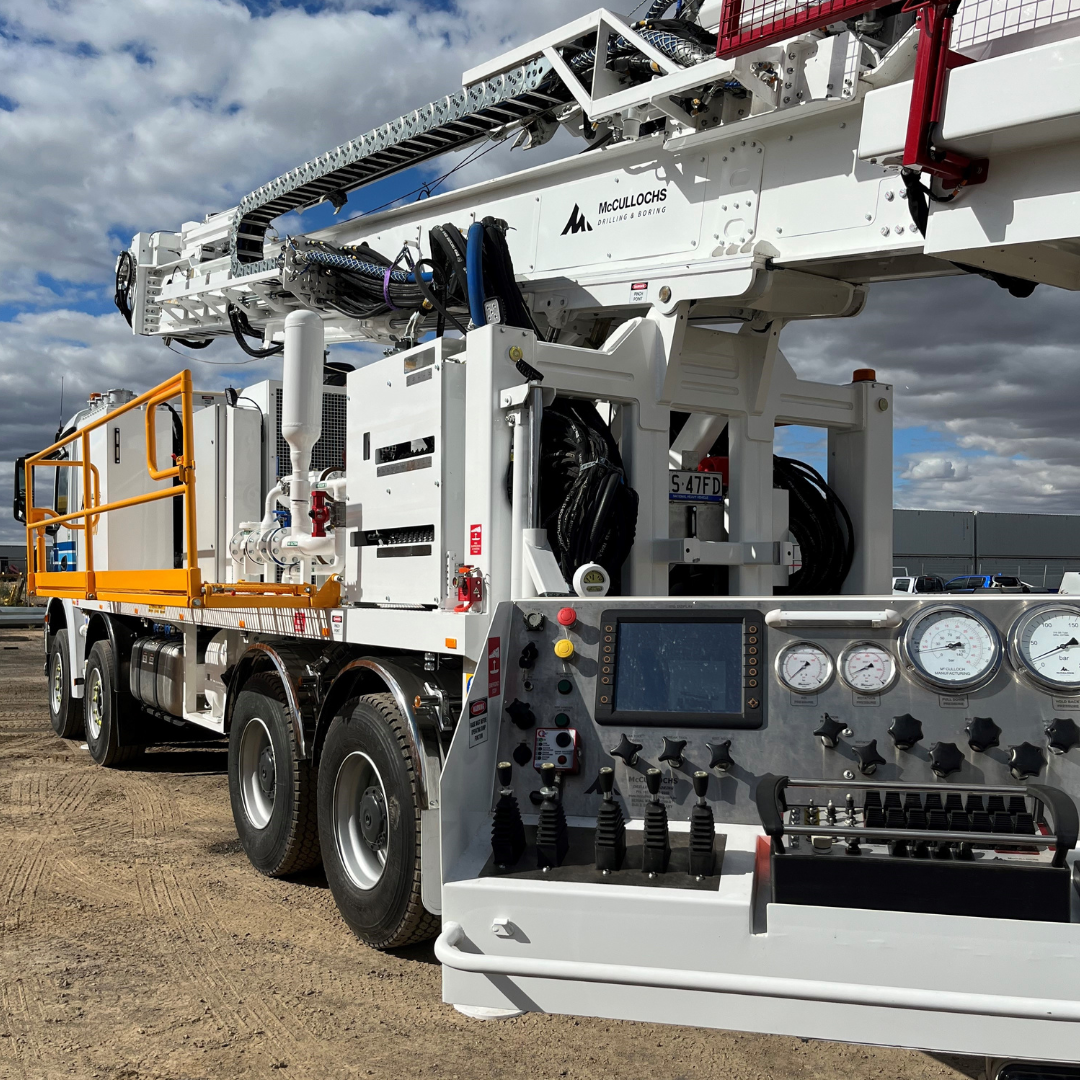

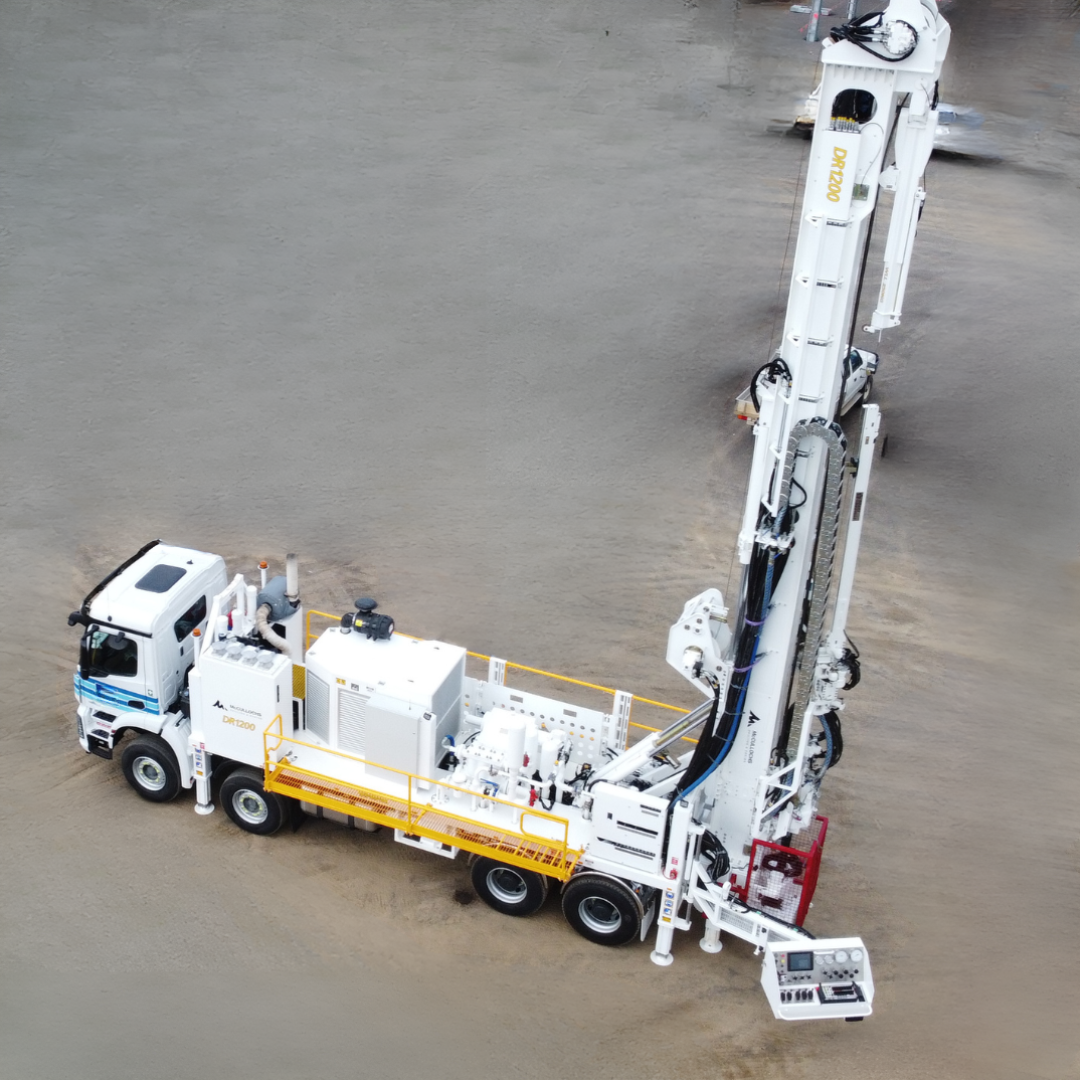

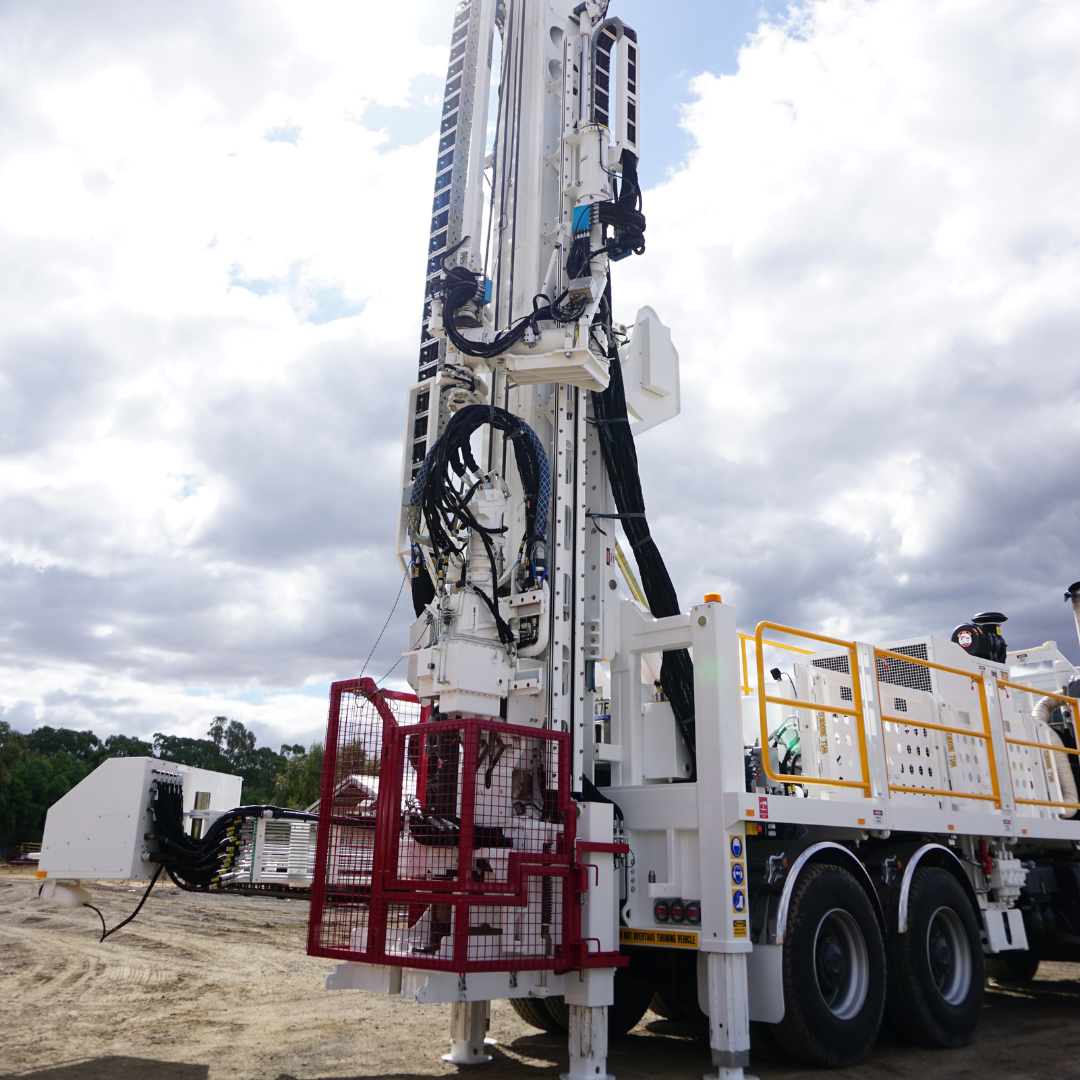

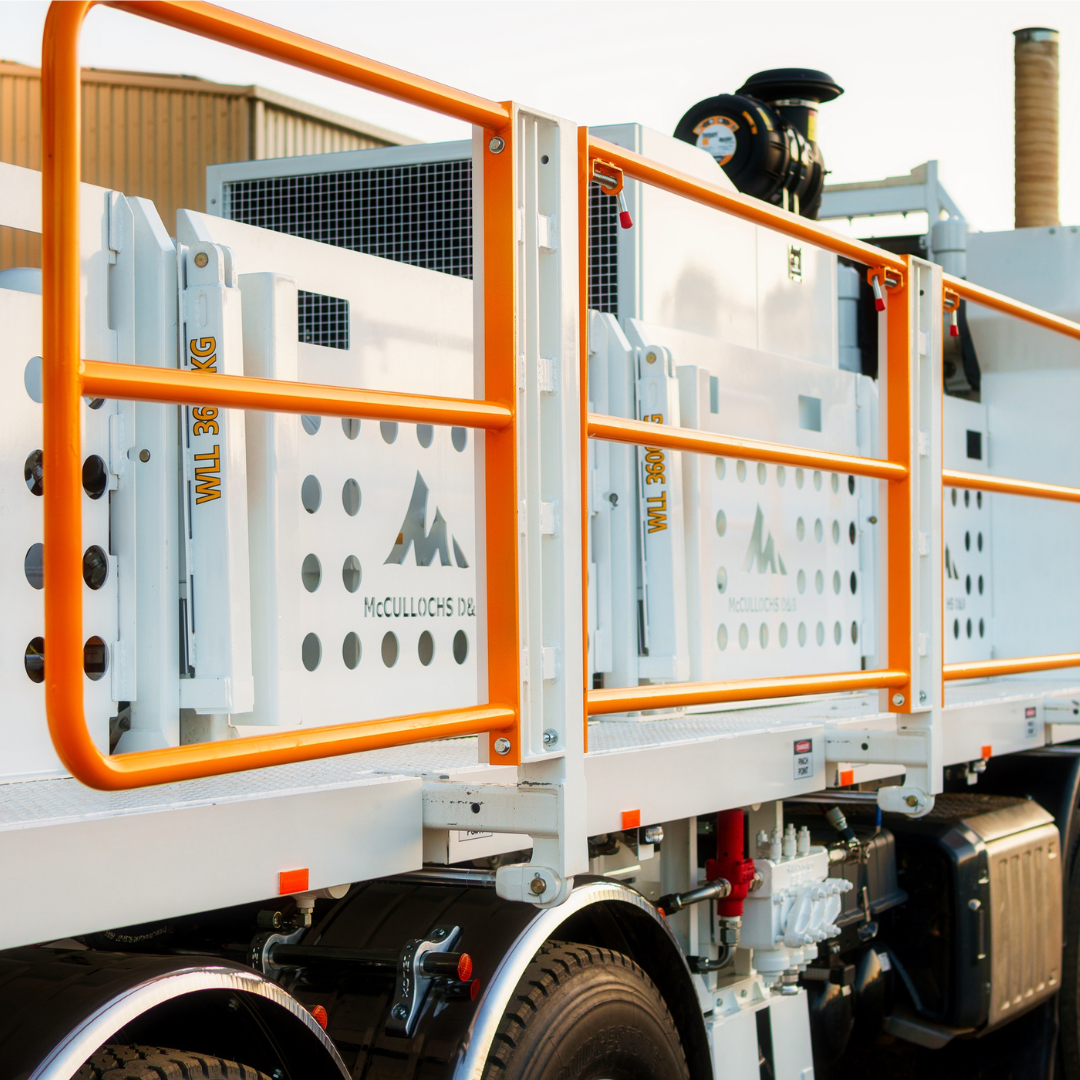

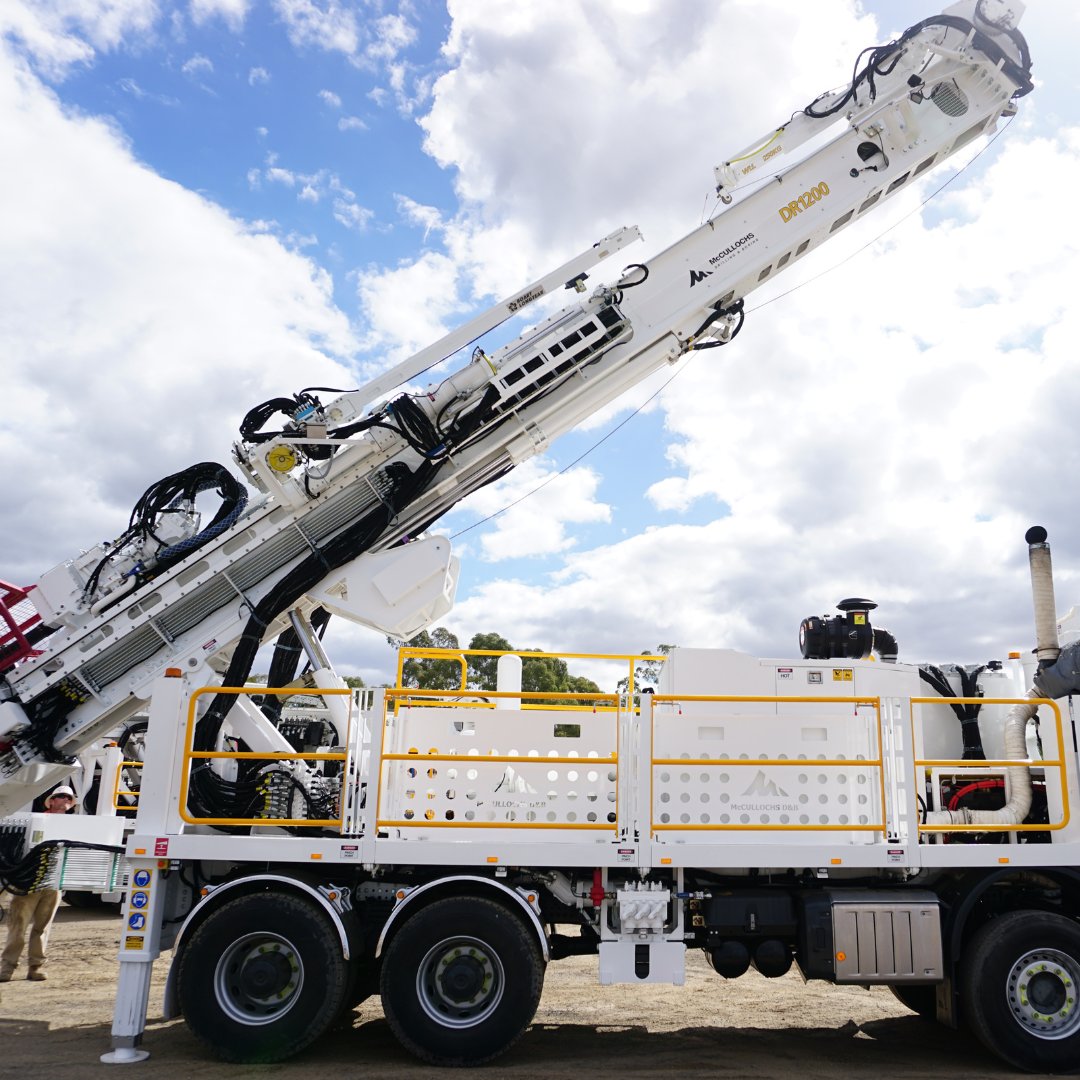

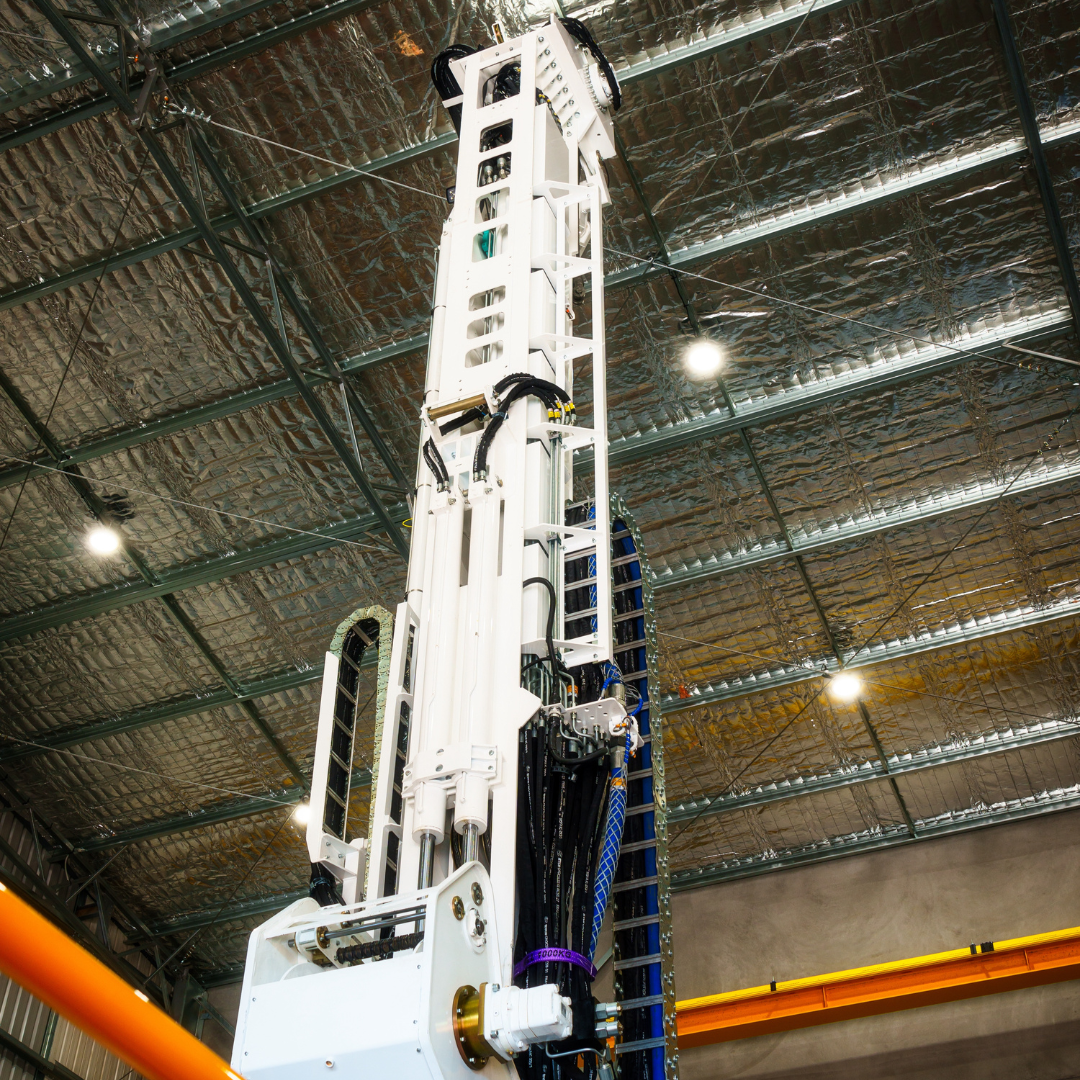

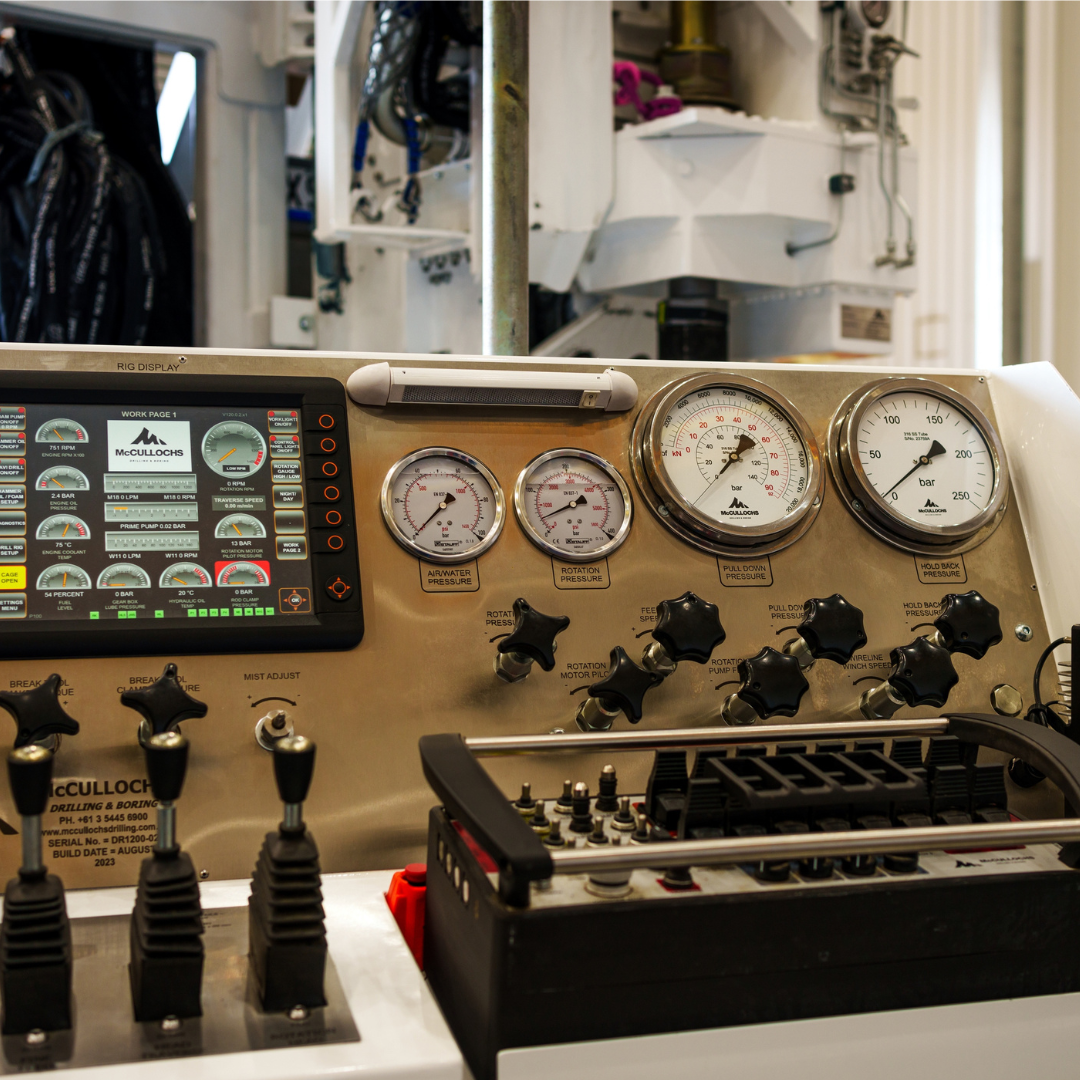

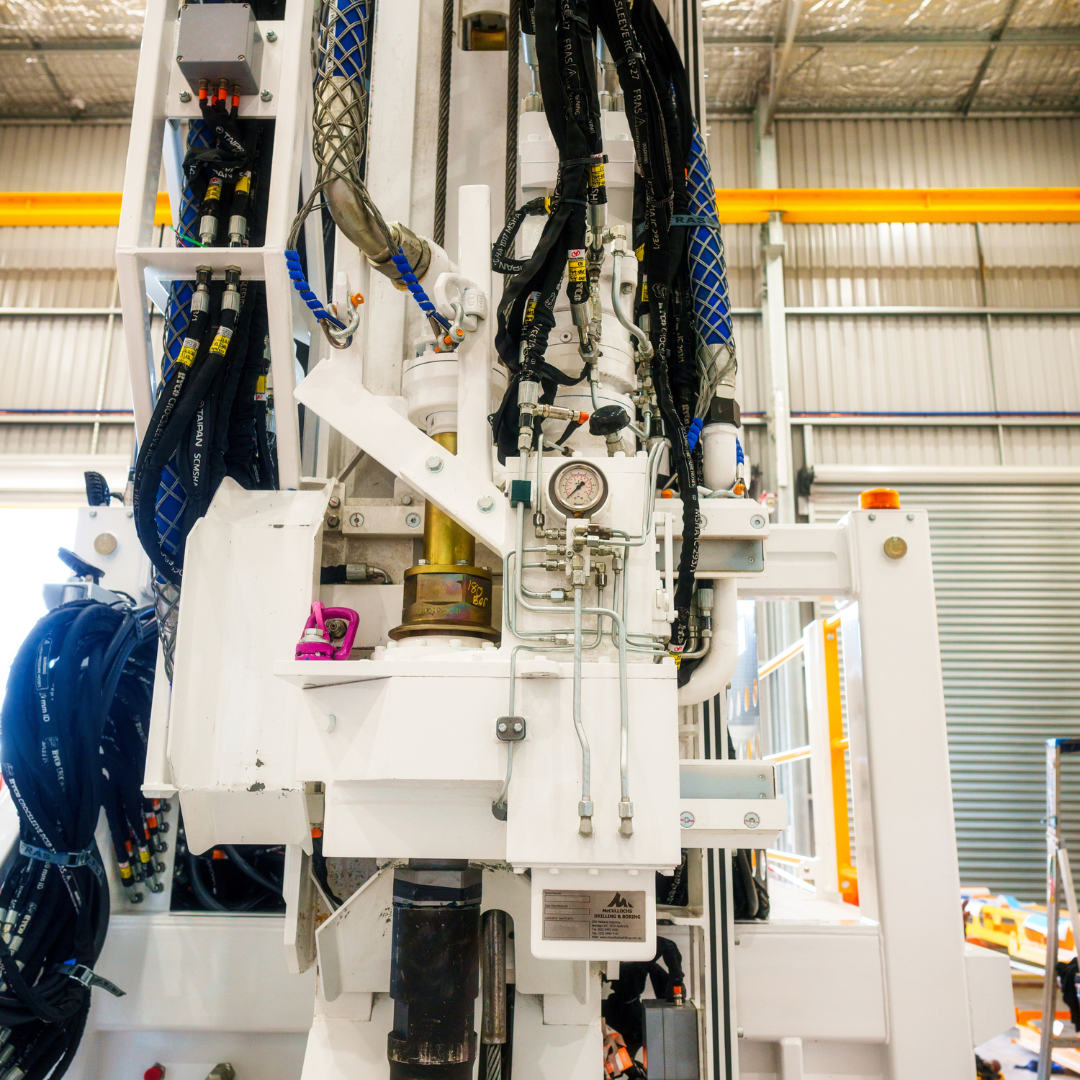

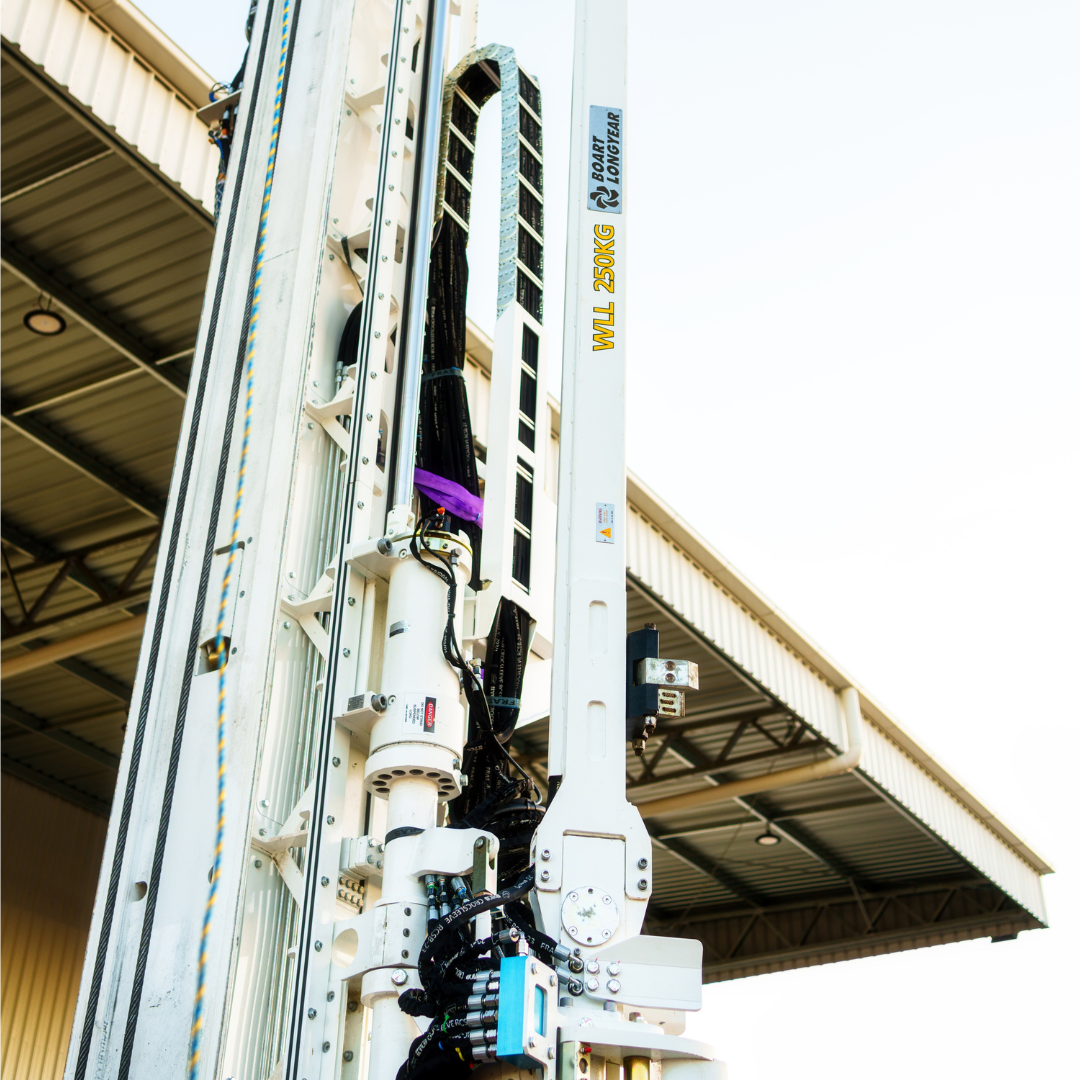

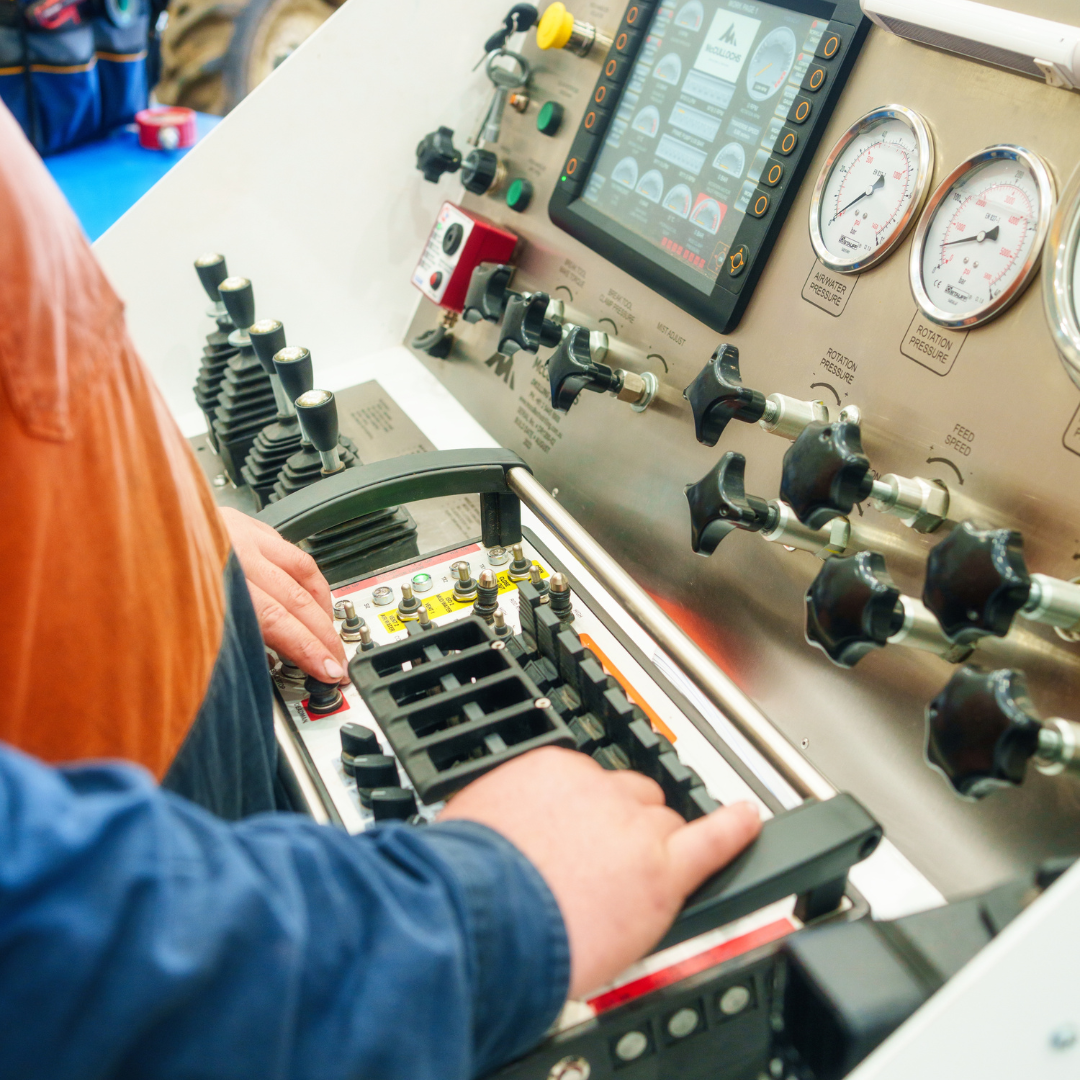

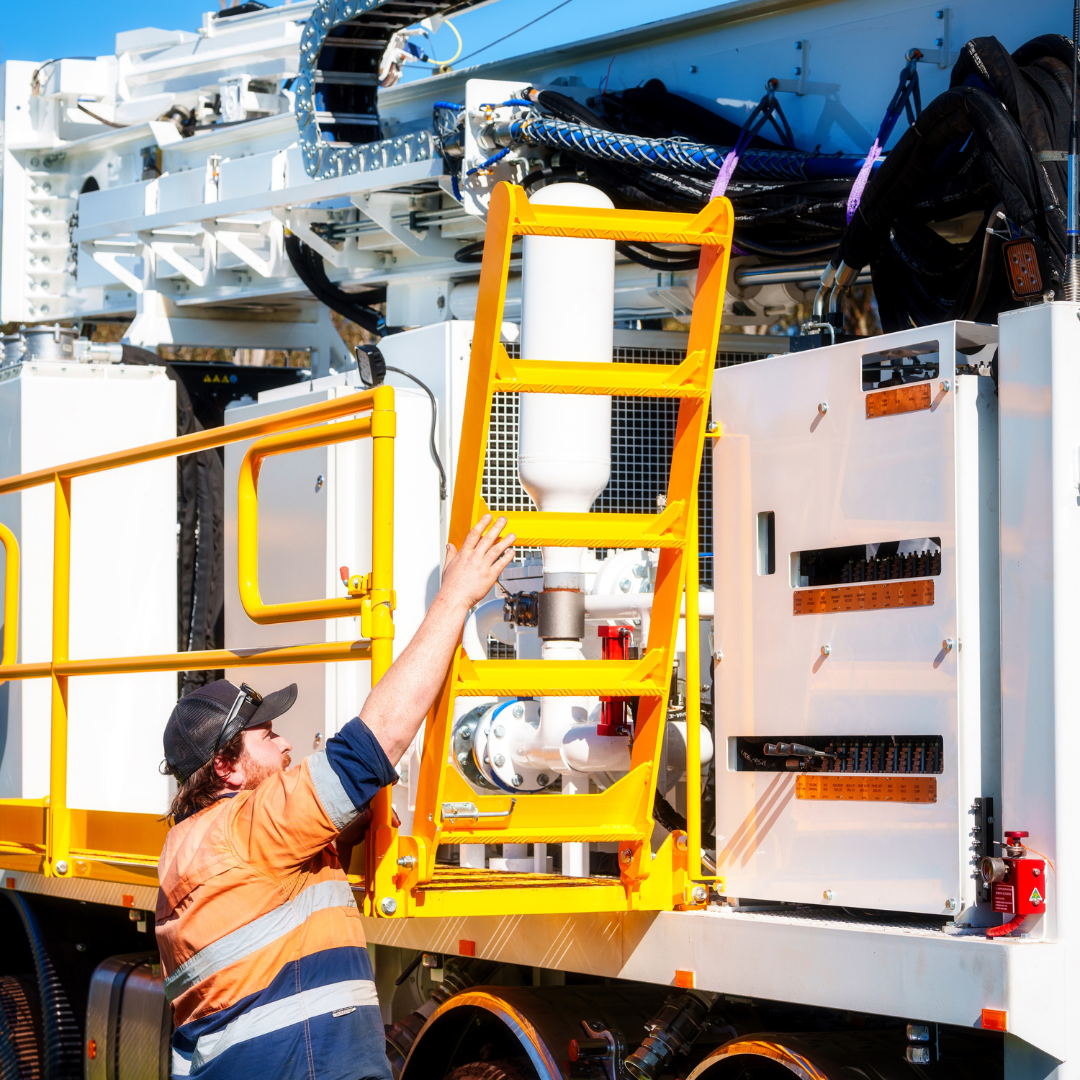

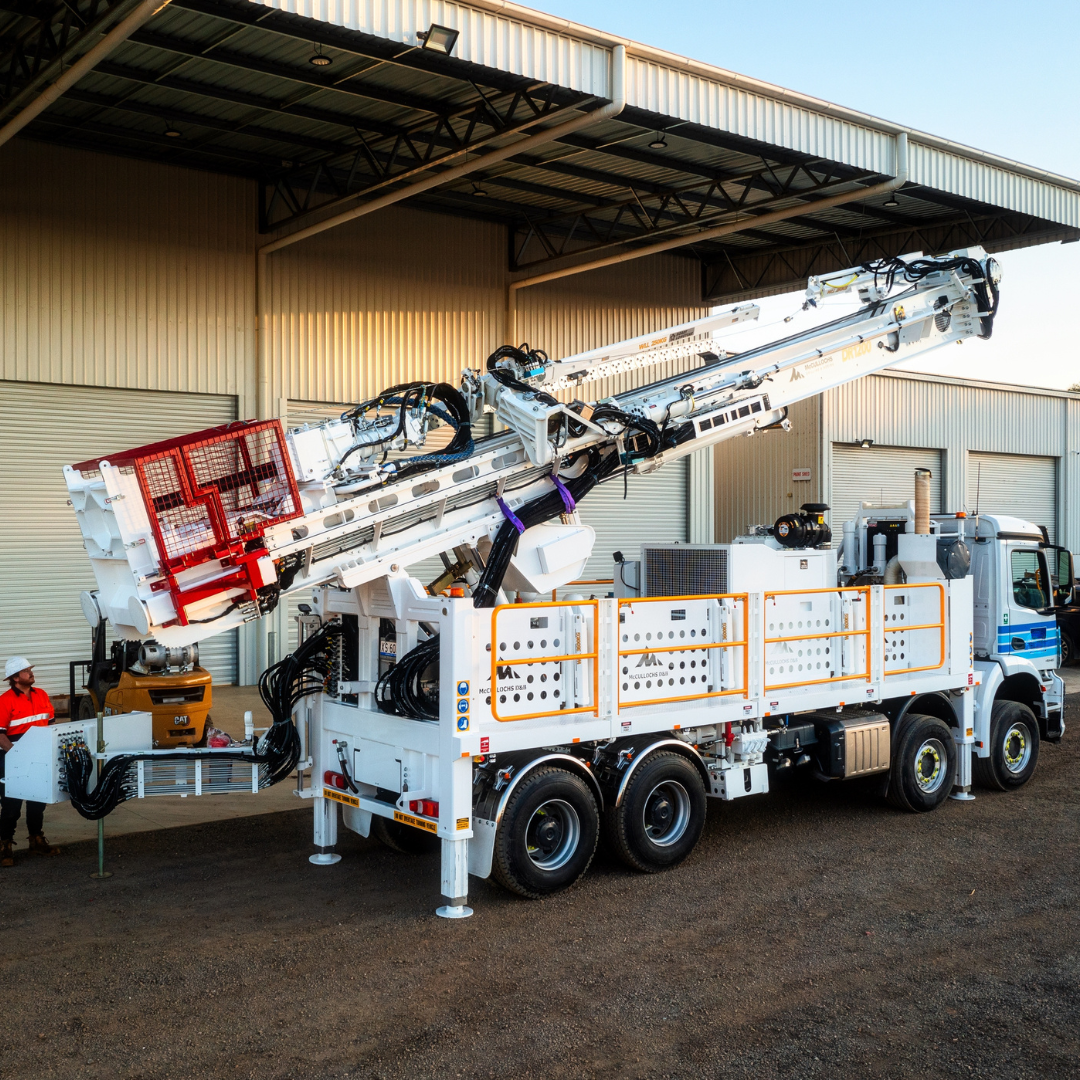

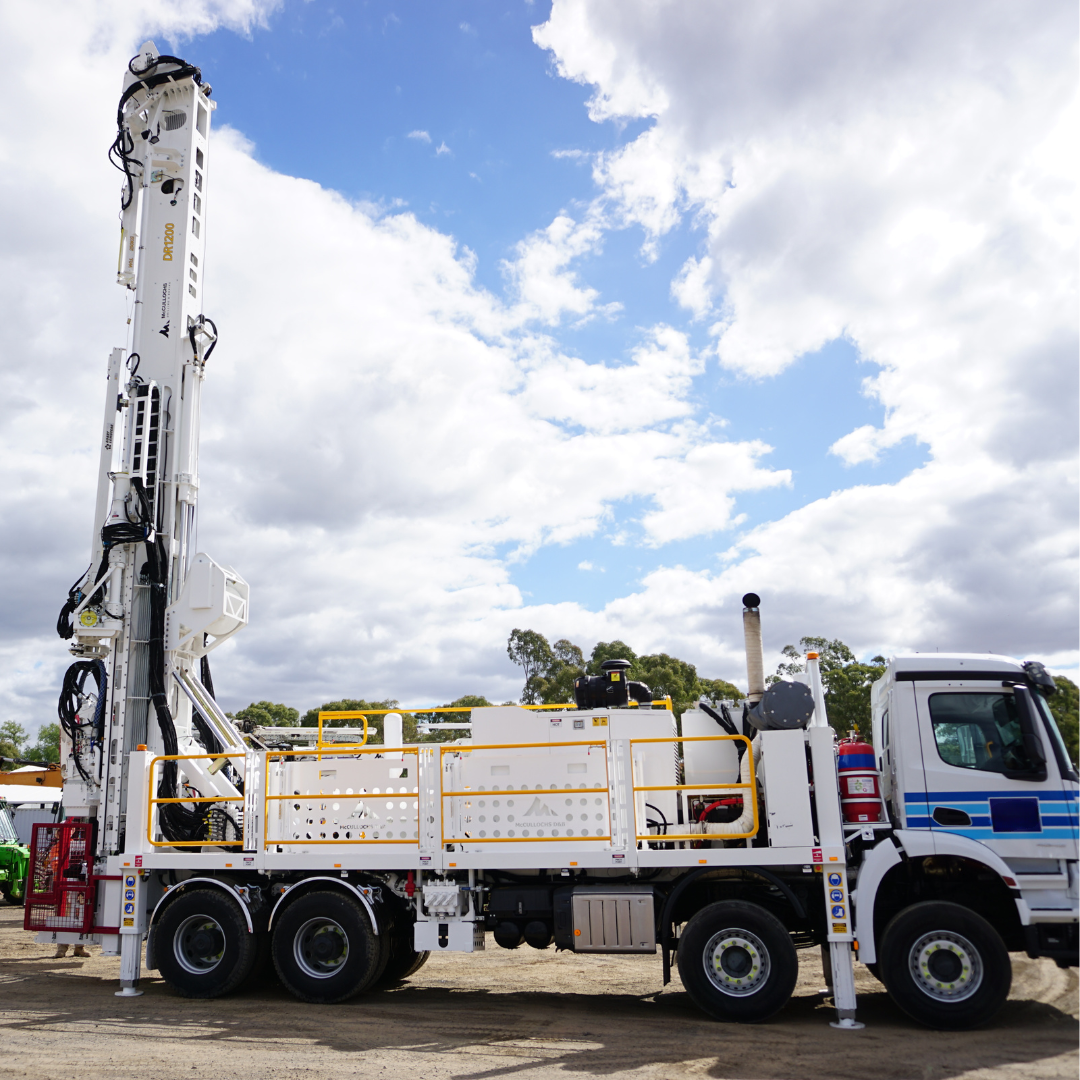

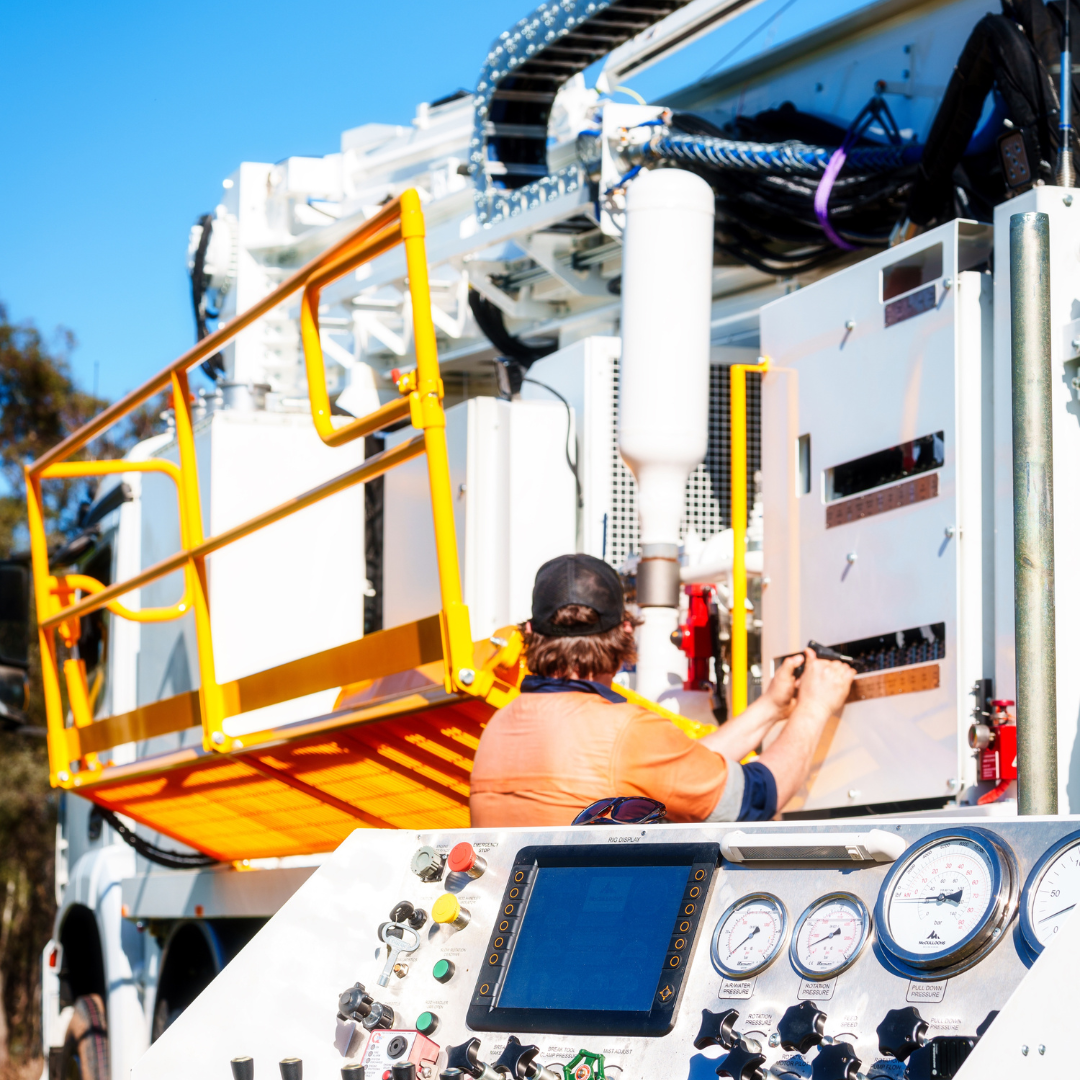

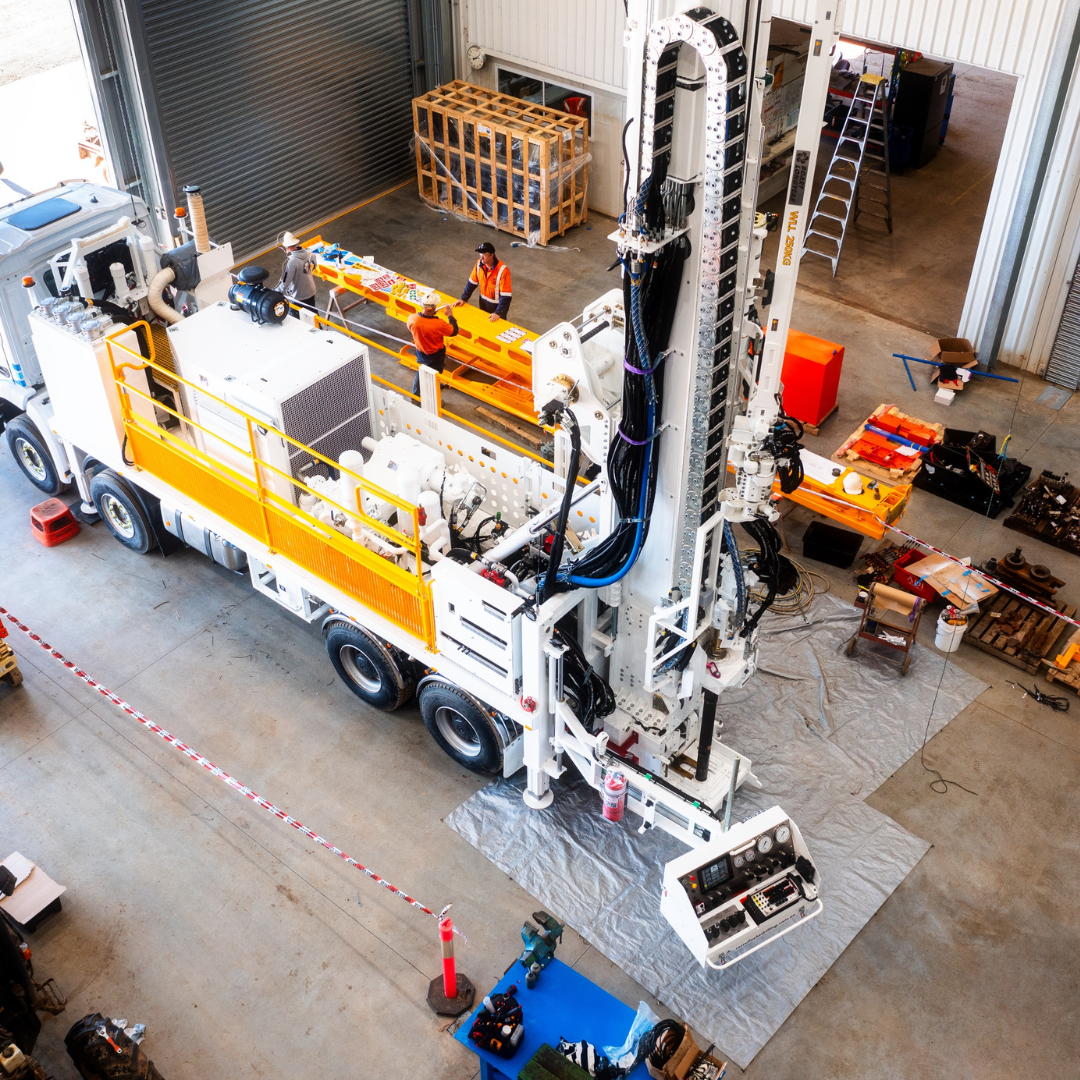

McCulloch DR1200
Functional Description
The McCulloch DR1200 is a high-capacity, multi-purpose drill rig engineered for maximum performance and reliability in demanding drilling environments. Driven by a powerful Cummins QSL9, this rig delivers exceptional drilling power and efficiency.
Basic Specs
Stroke: 7.2M
Pull Back: 24T
Engine: Cummins QSL9
Head Torque: 11,000Nm @ 10-100RPM1000Nm @ 1200RPM
Depth Capacity
114.3mm – 1450M
88.9mm – 2250M
69.9mm – 3200M
Optional Extras
- Rod Rack (Hydraulic)
- Rod Handler
- Rod Spinner
- Superfoot Make/Break
- On Board Compressor
- M16/M18 FMC Mud Pump
- G&D 5×6 Mud Pump
- Remote Control Operator Functions
- Data Logging
- Sound Suppression
- Track Mounted
- Truck Option
- Oil Cooler
- Swing-out Operator Panel (3M from Drill String)
- Custom Modifications
- RC Kit
- And more!
Full Spec Sheet

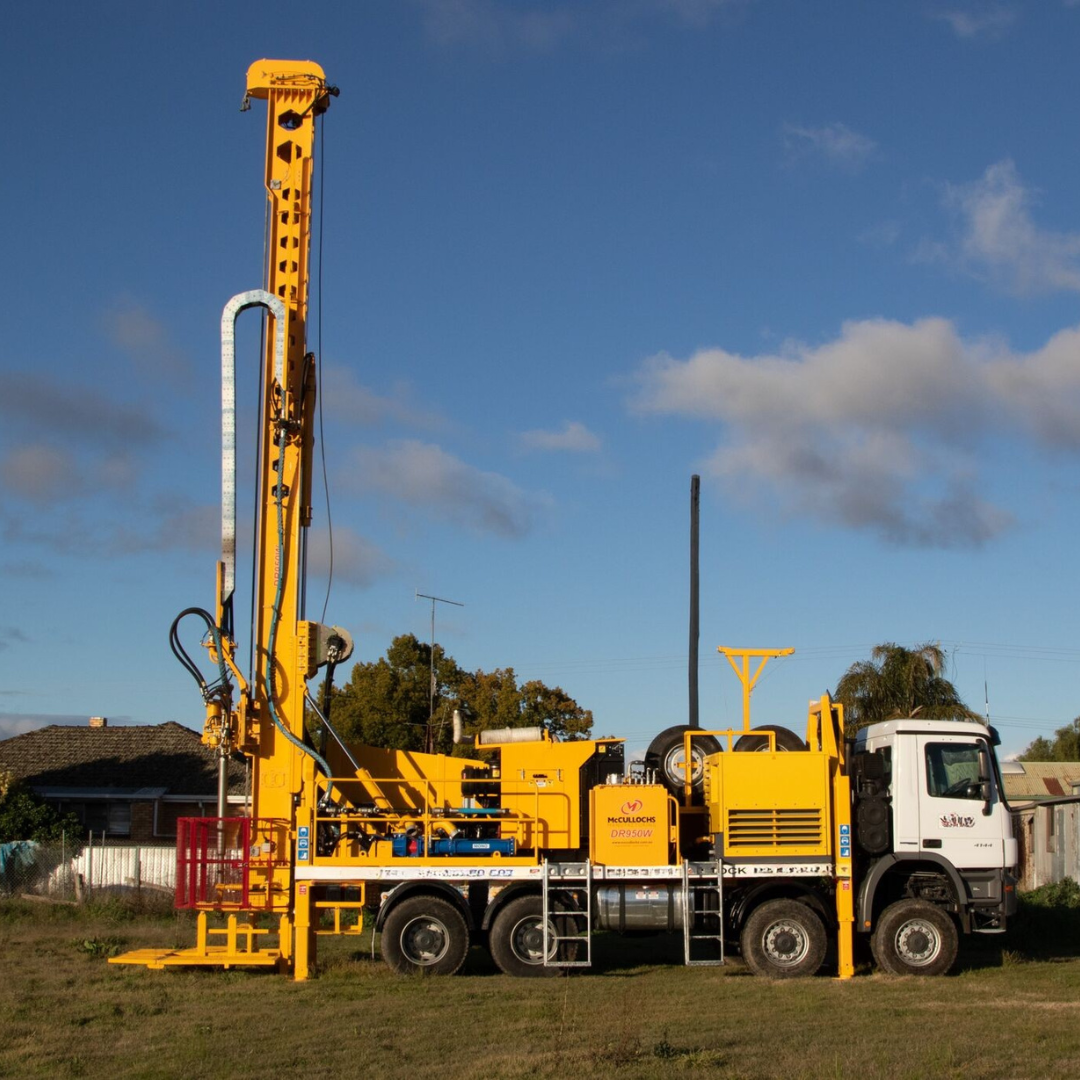

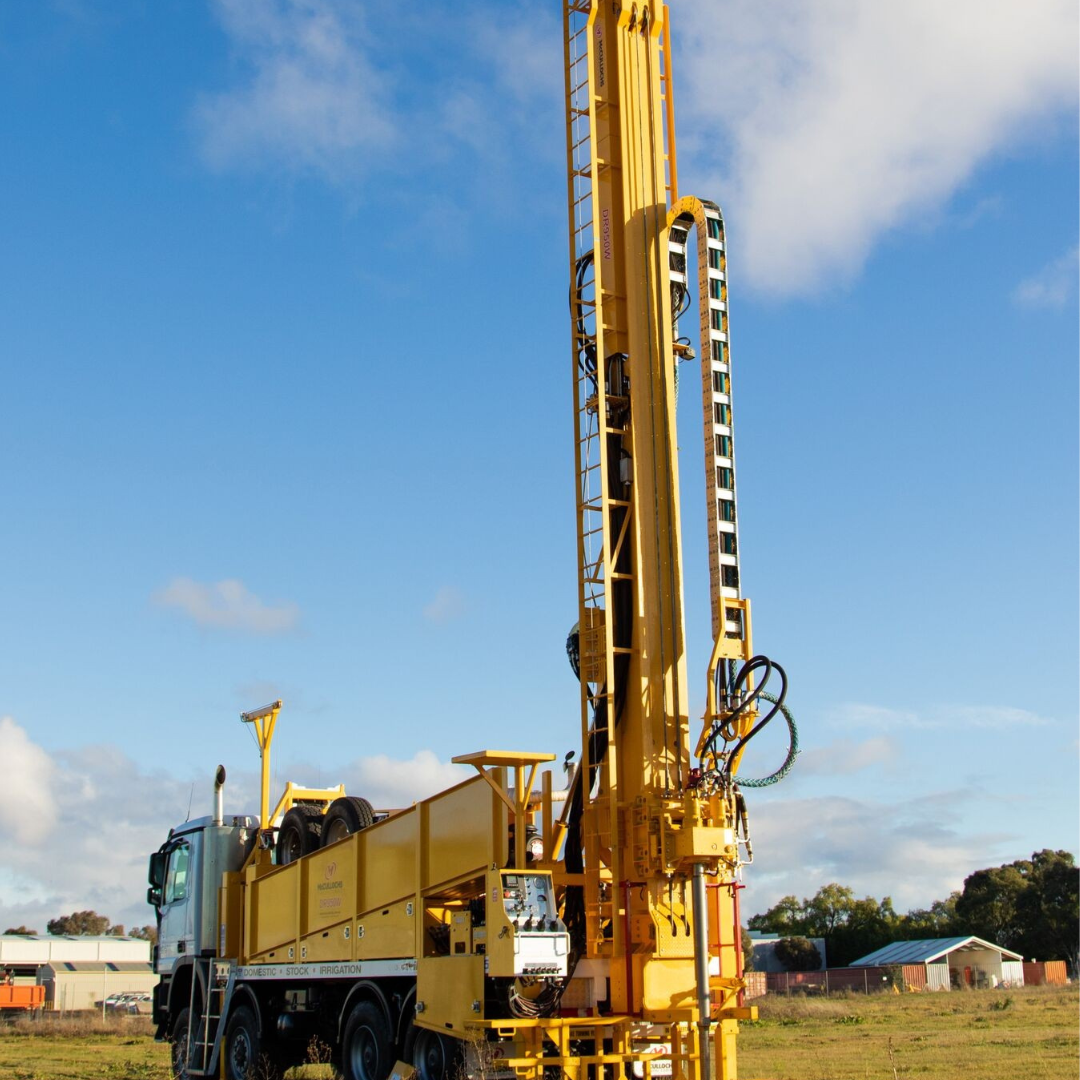

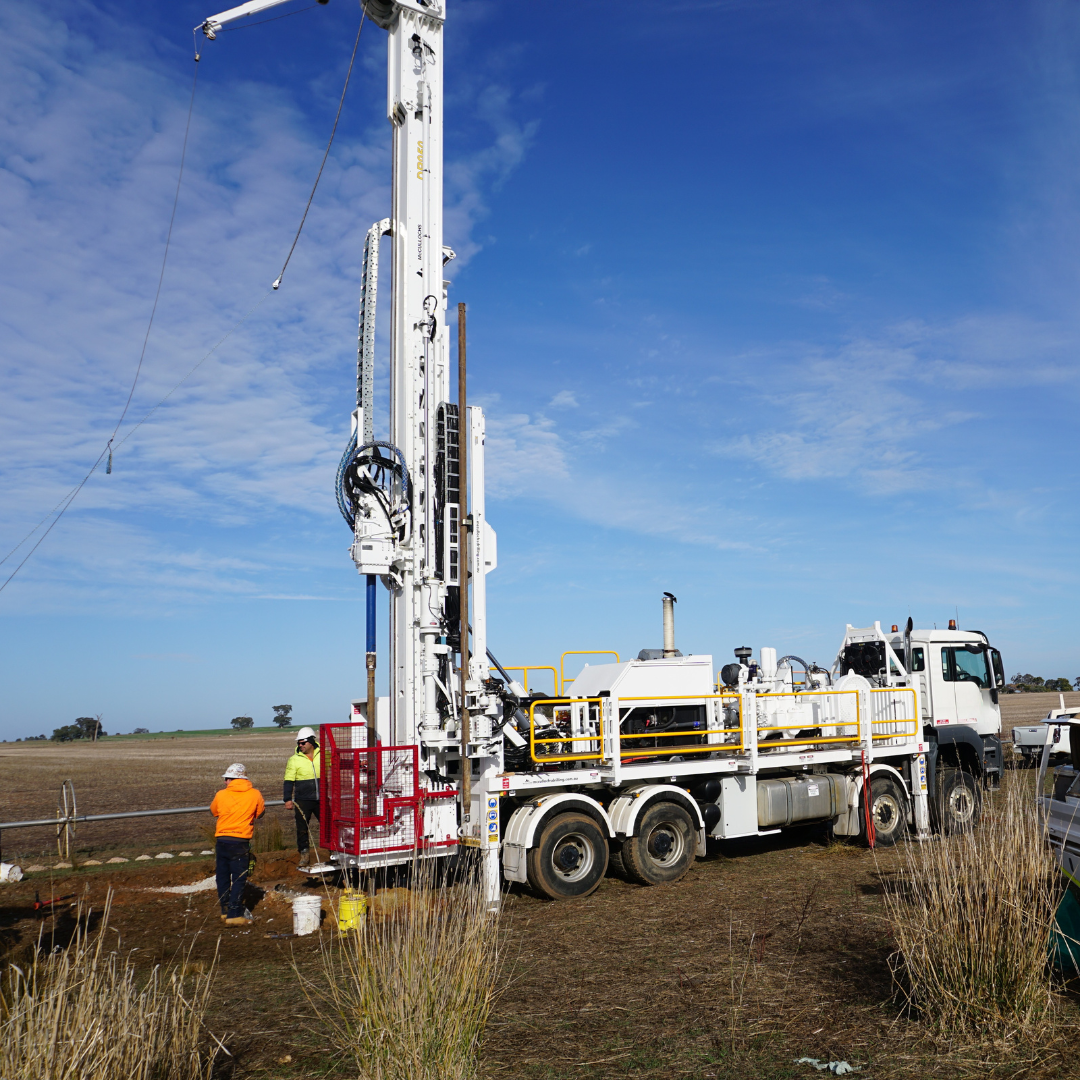

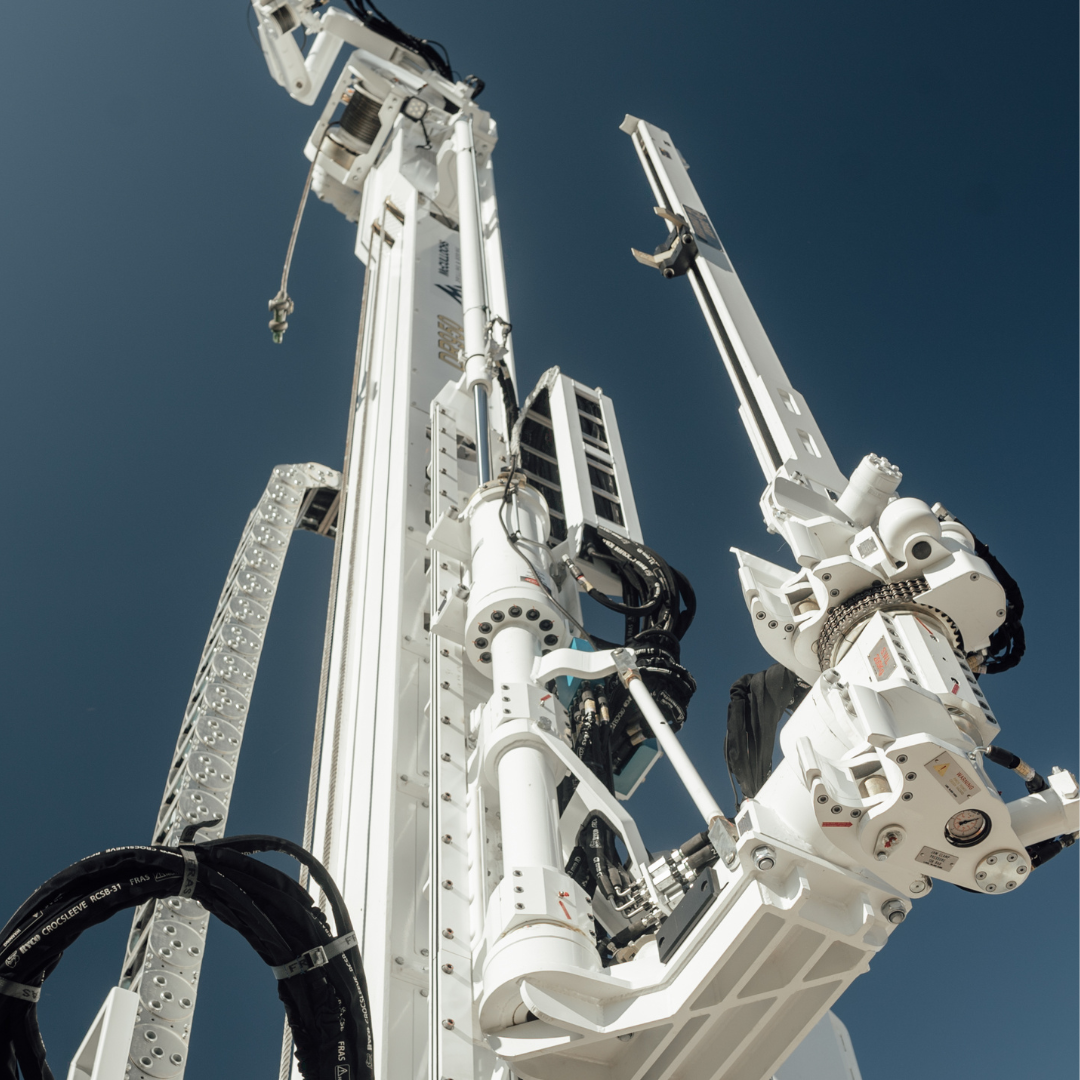

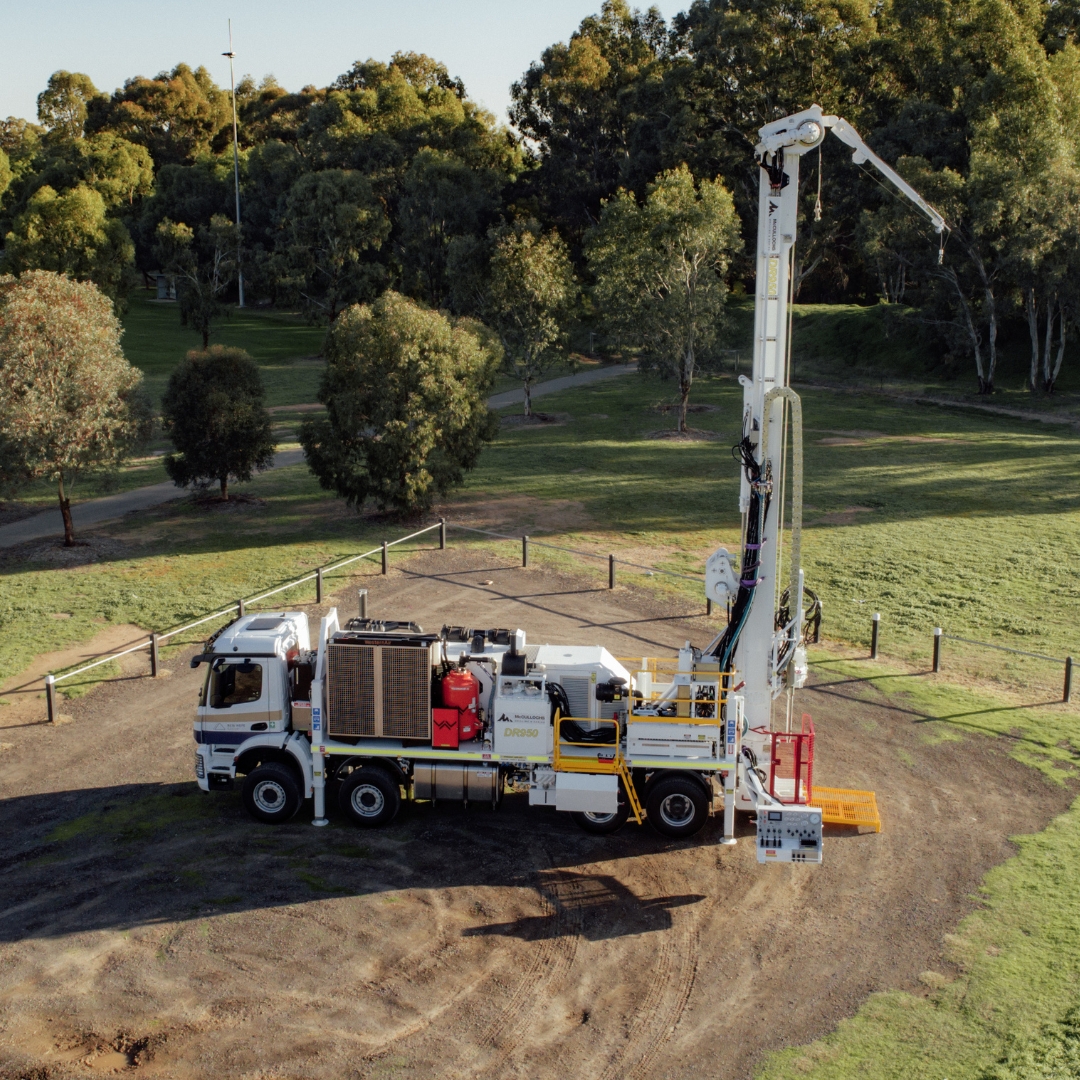

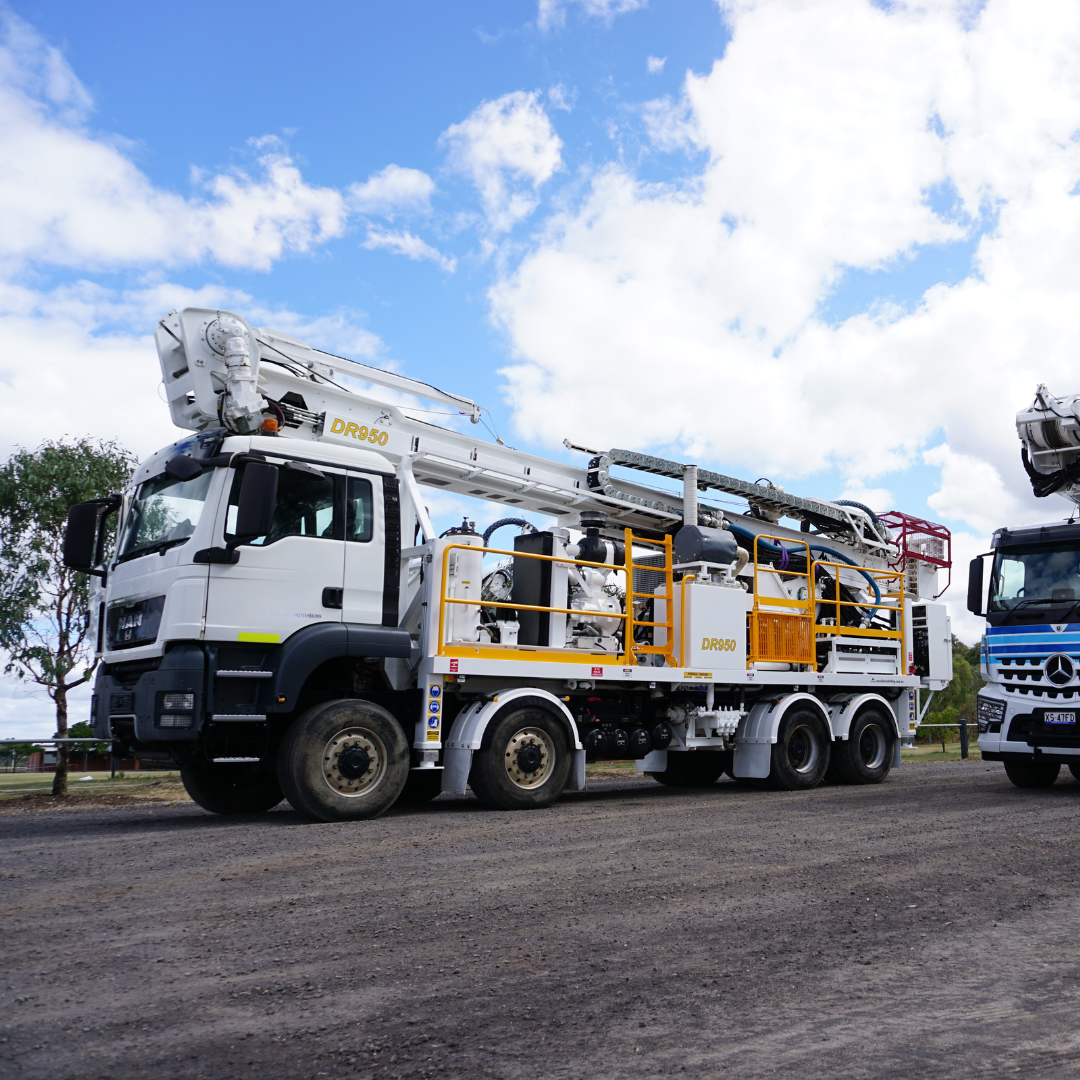

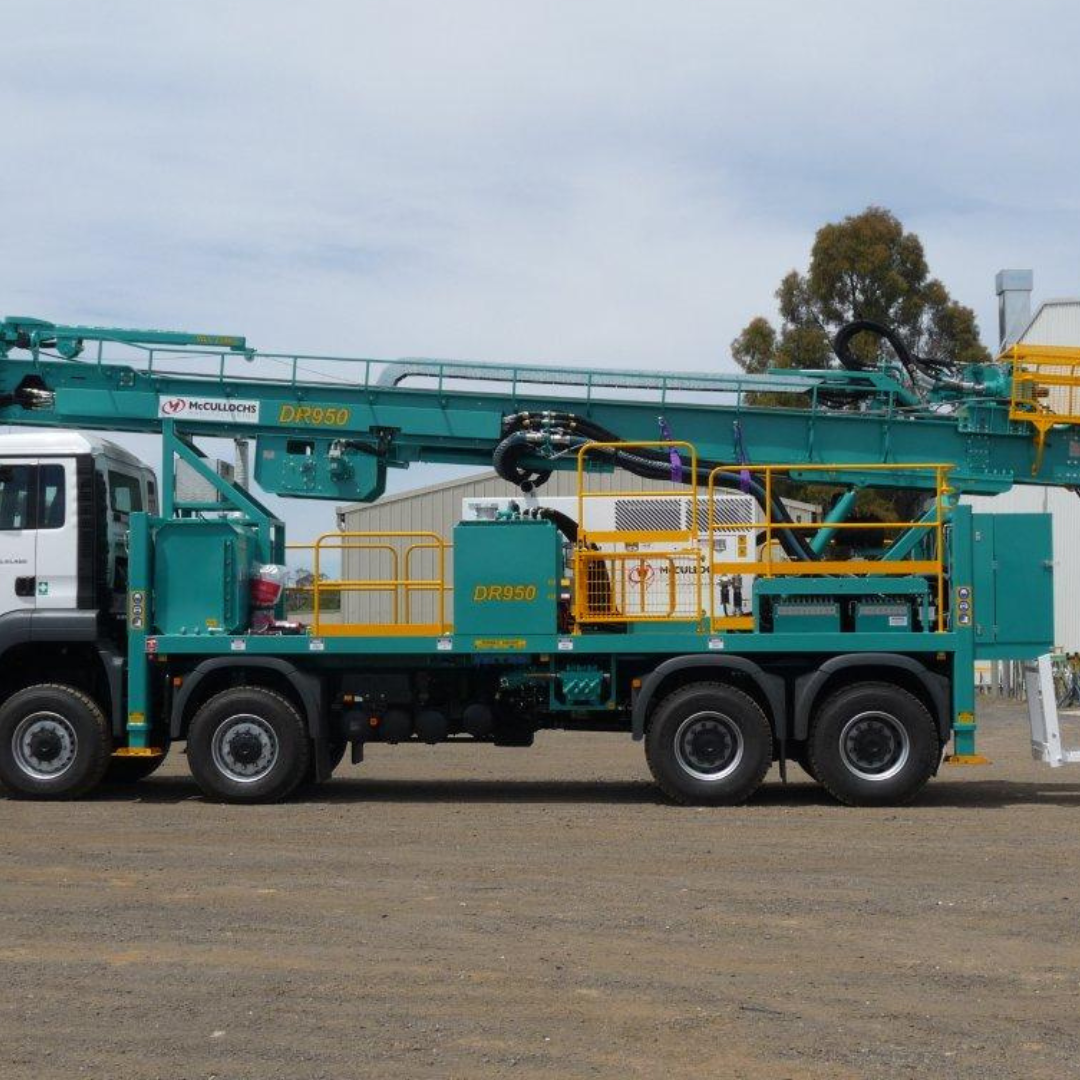

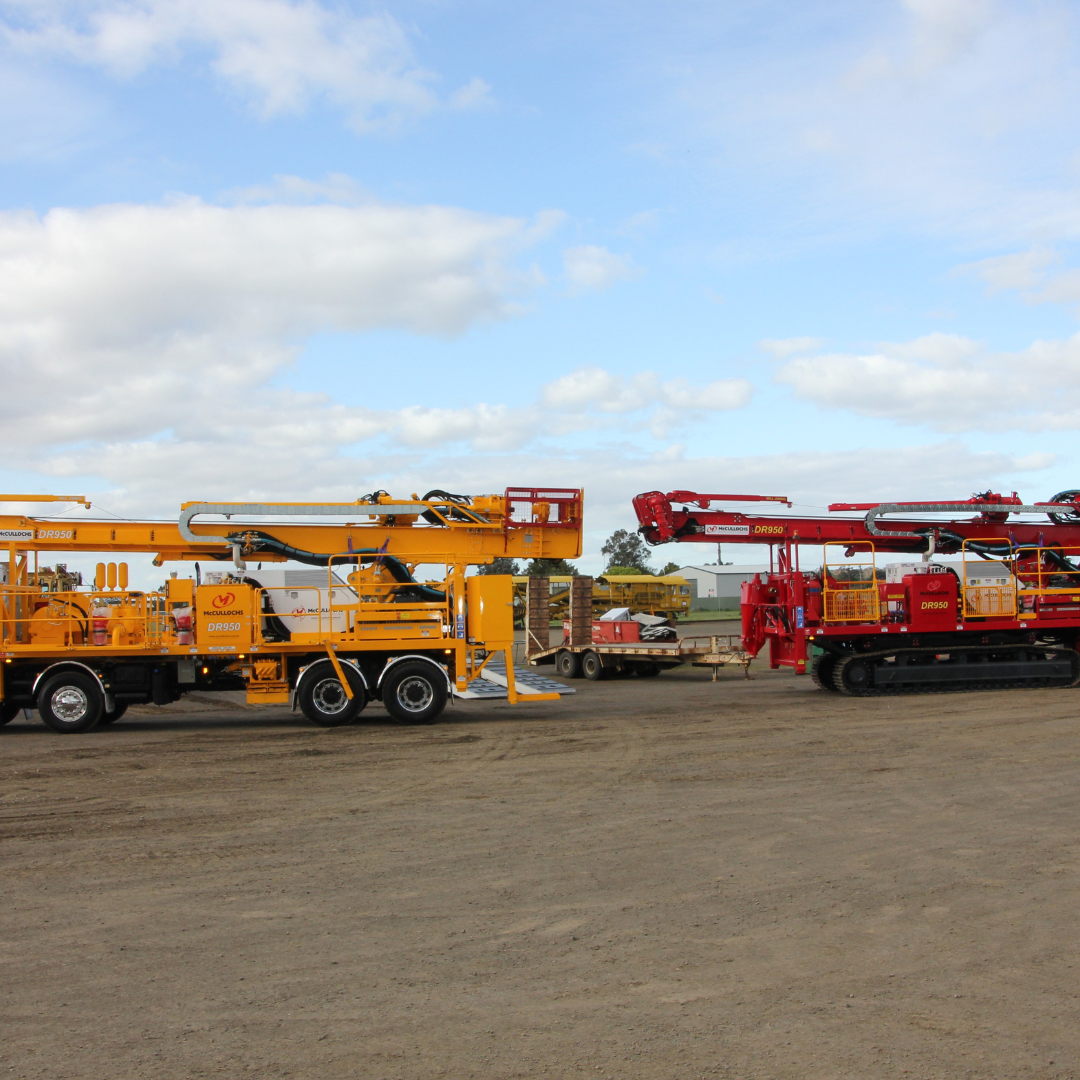

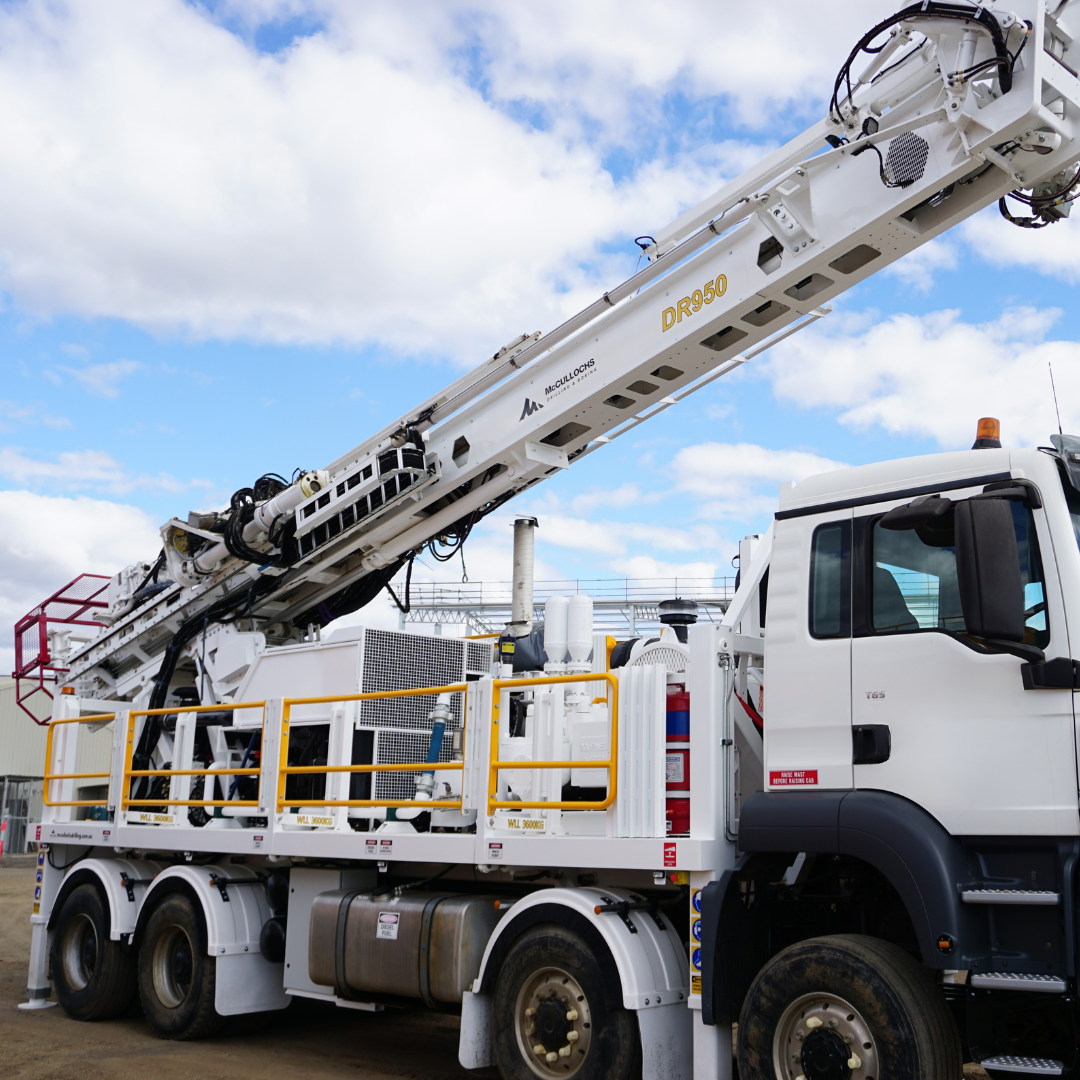

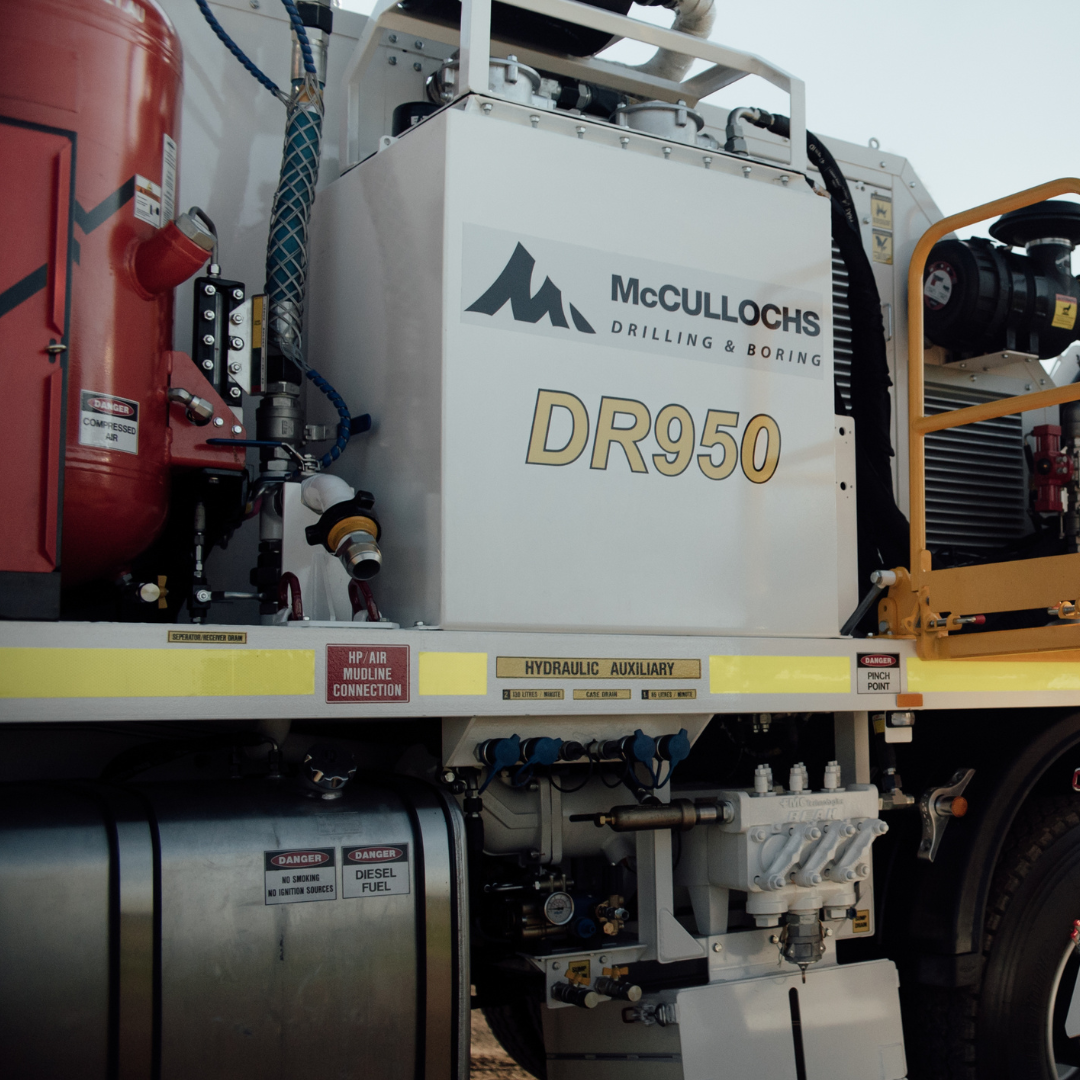

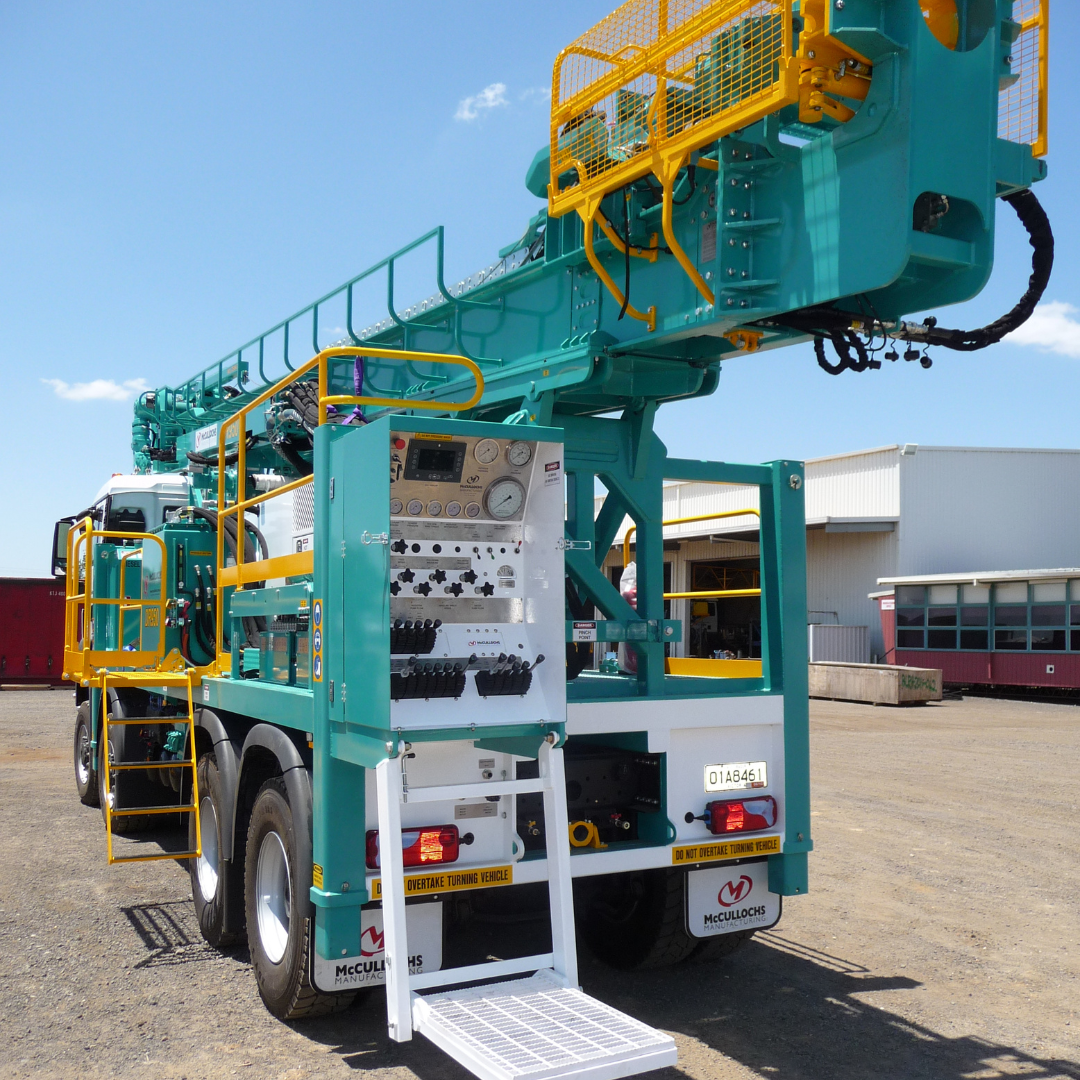

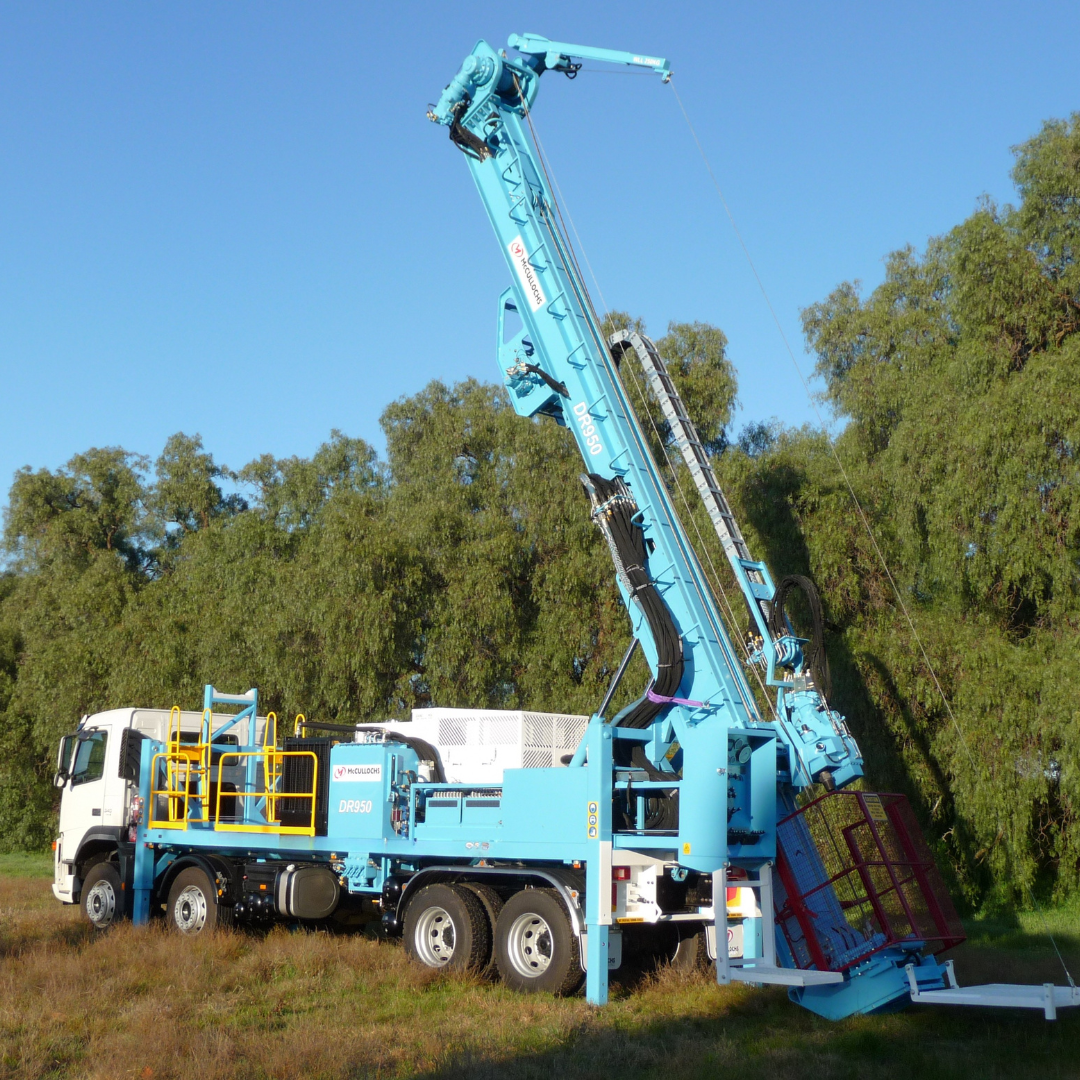

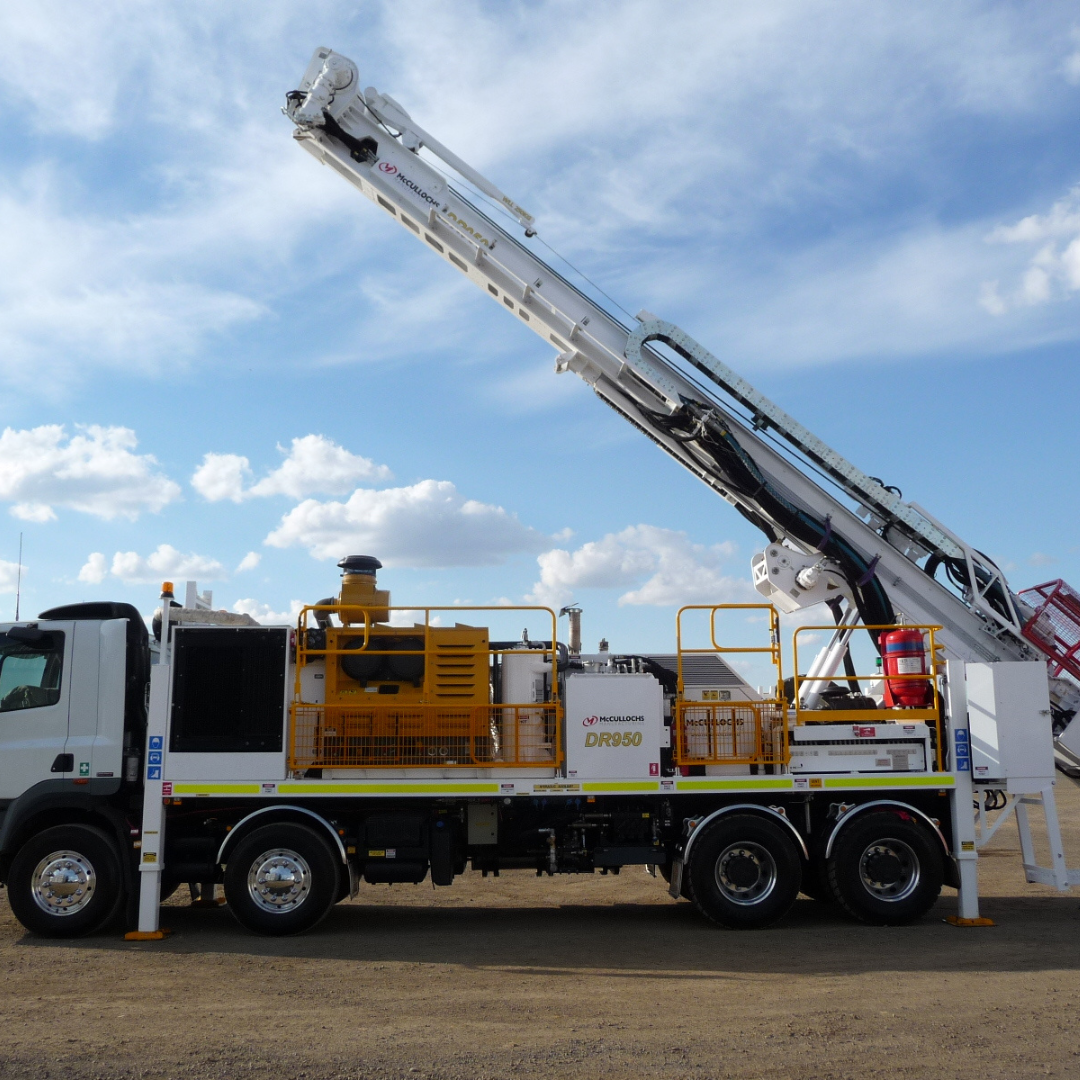

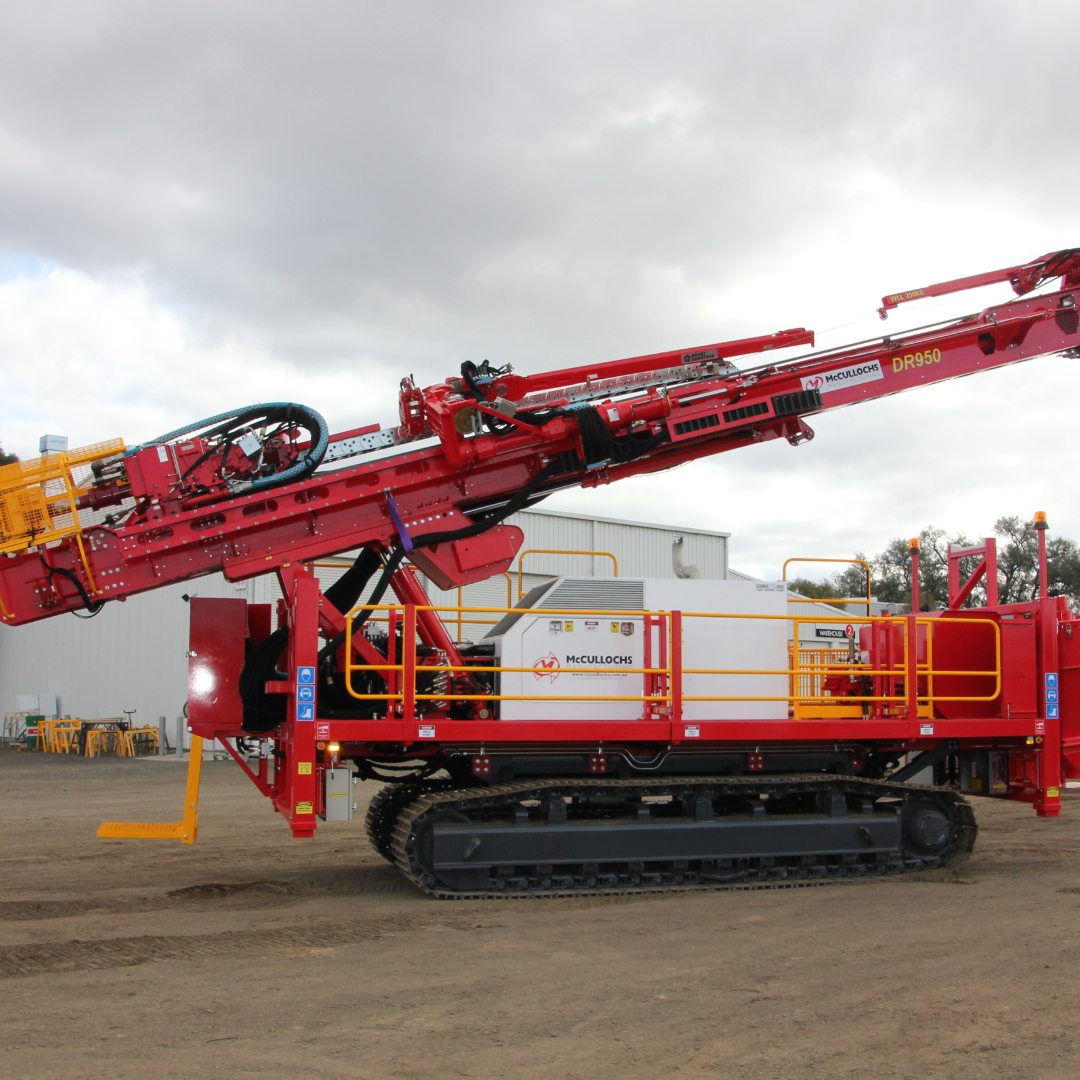

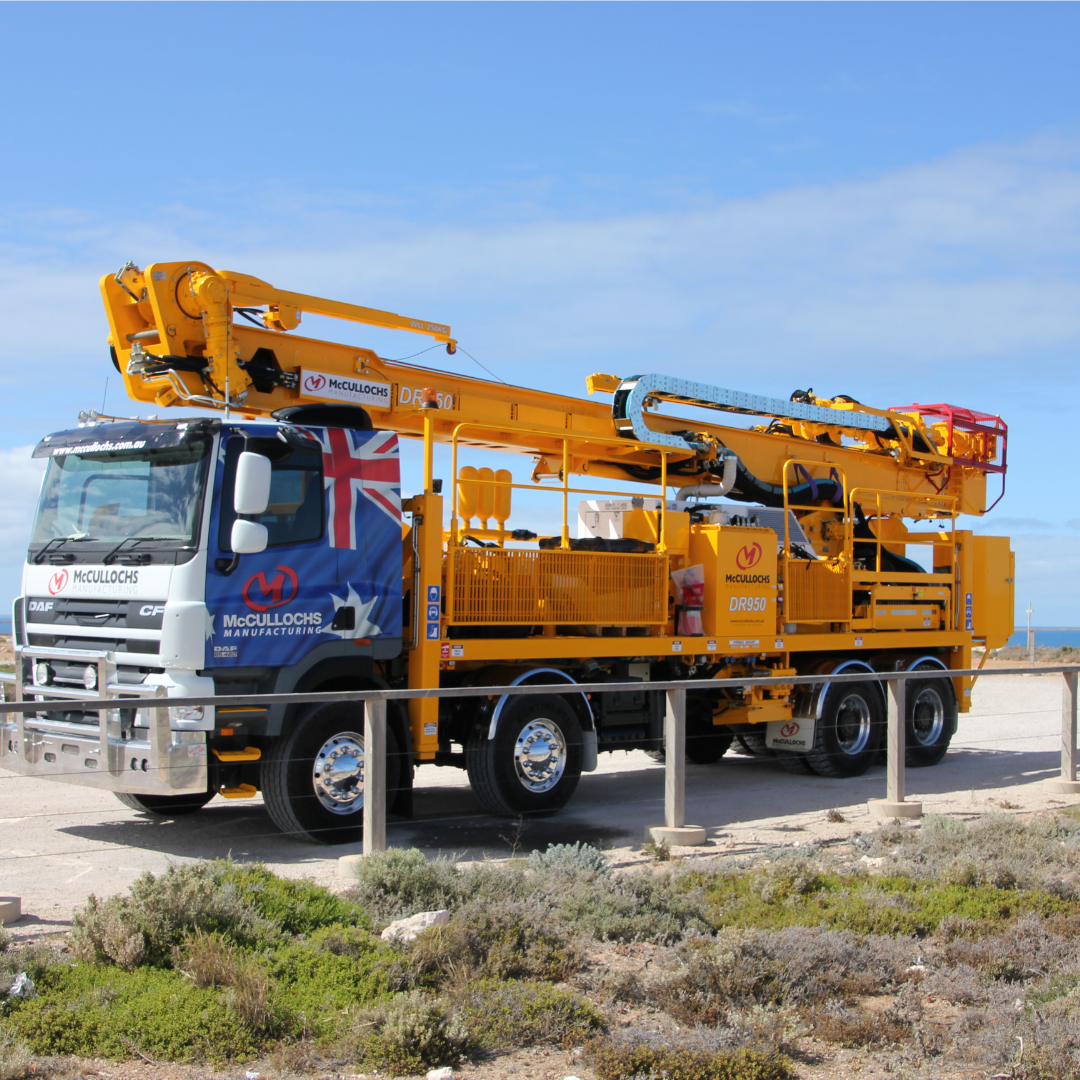

McCulloch DR950
Functional Description
The McCulloch DR950 is a high-performance, multi-purpose drilling rig designed for ultimate productivity, higher running efficiency, and less downtime. Built to survive the most severe drilling conditions and certified to stringent Mast Specifications, the DR950 allows operators to quickly alternate between RC (Reverse Circulation) and Diamond Drilling.
Basic Specs
Stroke: 7.2M
Pull Back: 12T
Engine: Cummins QSB6.7
Head Torque: 5100Nm @ 3-100RPM364Nm @ 1400RPM
Depth Capacity
114.3mm – 1450M
88.9mm – 2250M
69.9mm – 3200M
Optional Extras
• Rod Rack (Hydraulic)
• Acoustic Engine Cabinet
• Wireline Winch top limit stop
• Foam/Washdown pump
• Hammer Oil Pump
• Special Hydraulics
• Rod Handler
• Make Break foot
• Rod Spinner
• M1836 Mud Pump
• Data Logging
• Wireless Control
• Onboard Air
• Custom modifications
and more!
Full Spec Sheet

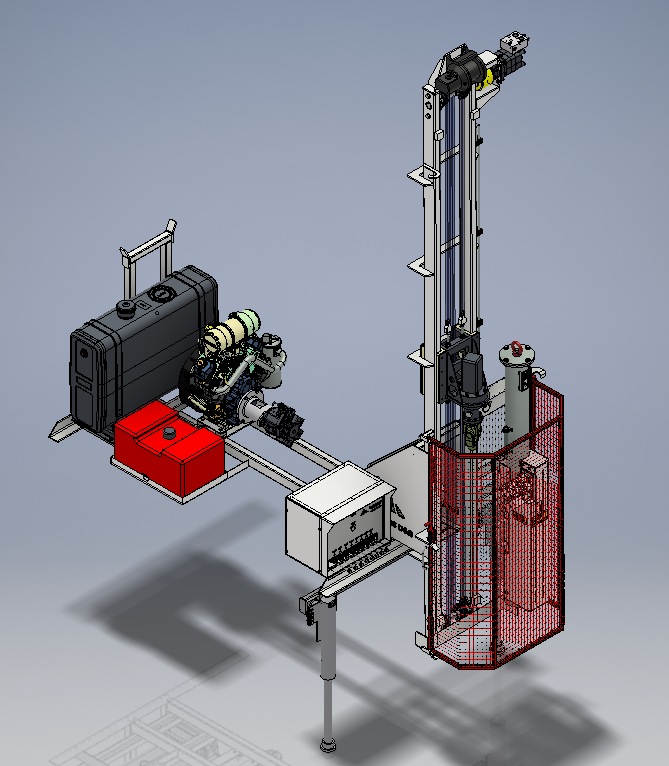

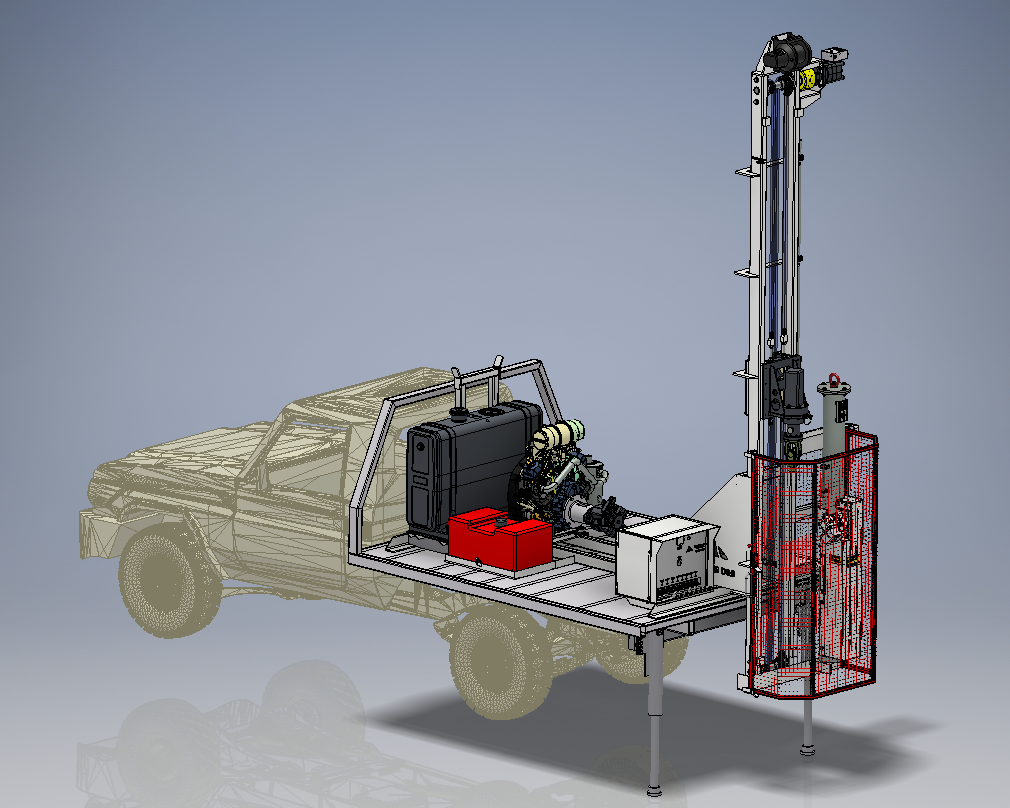

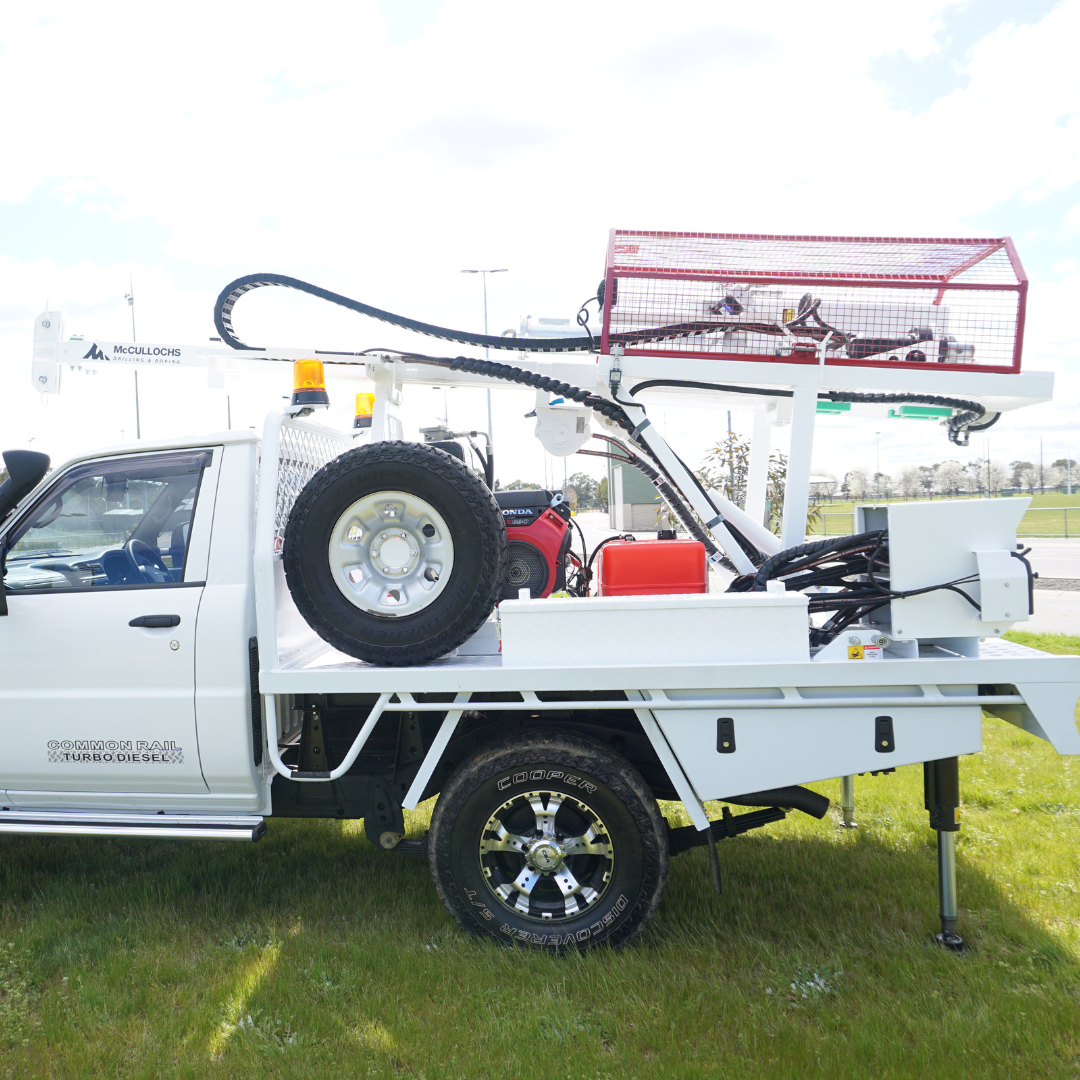

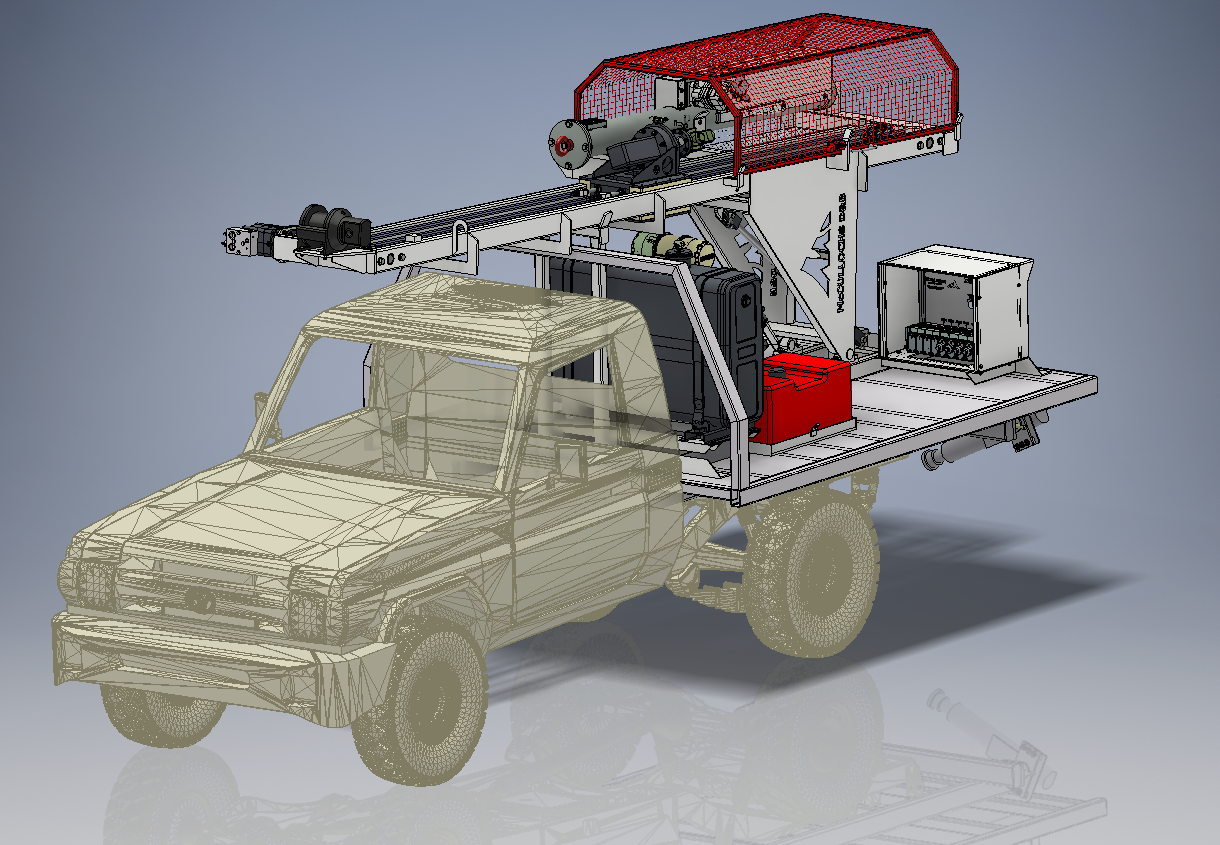

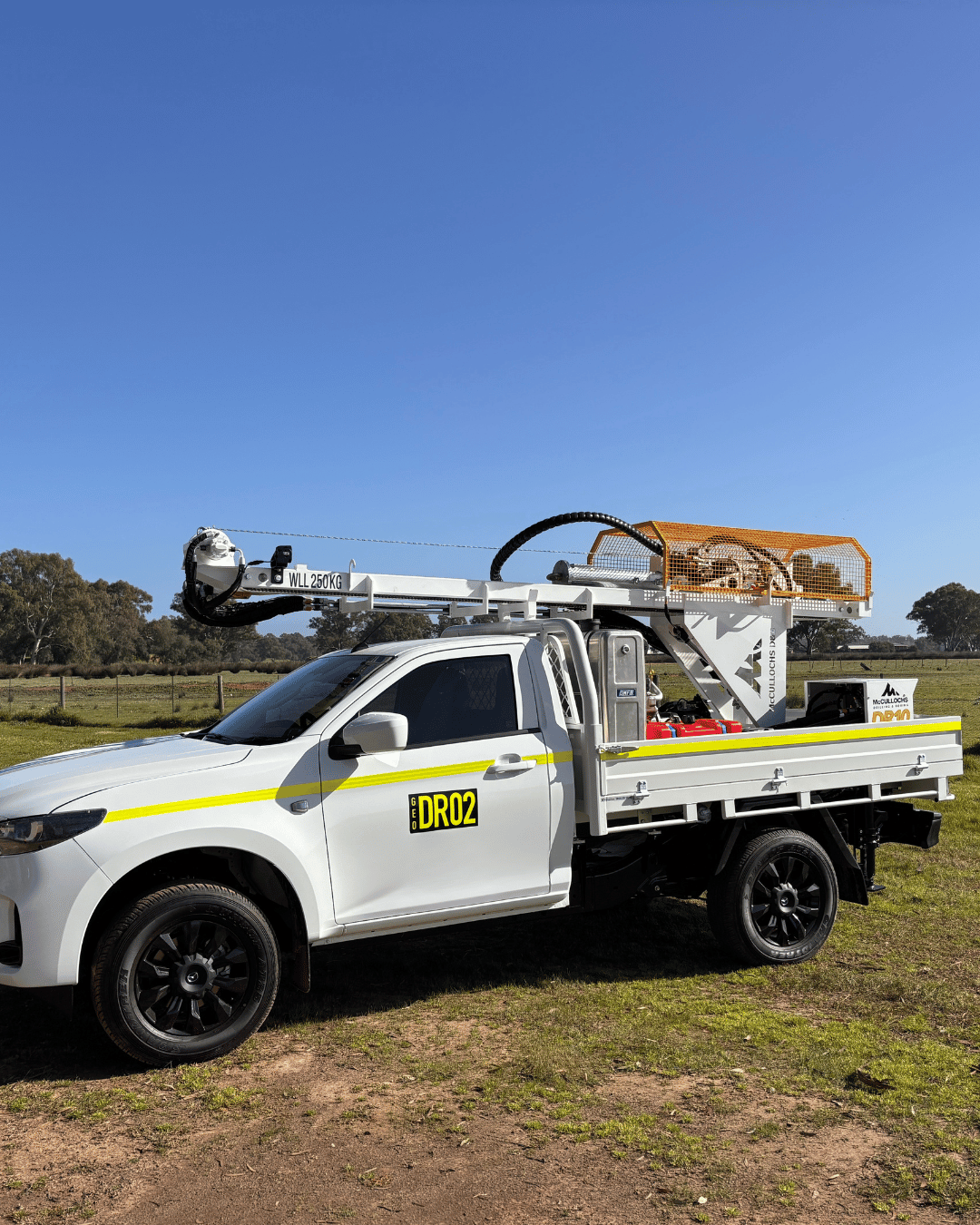

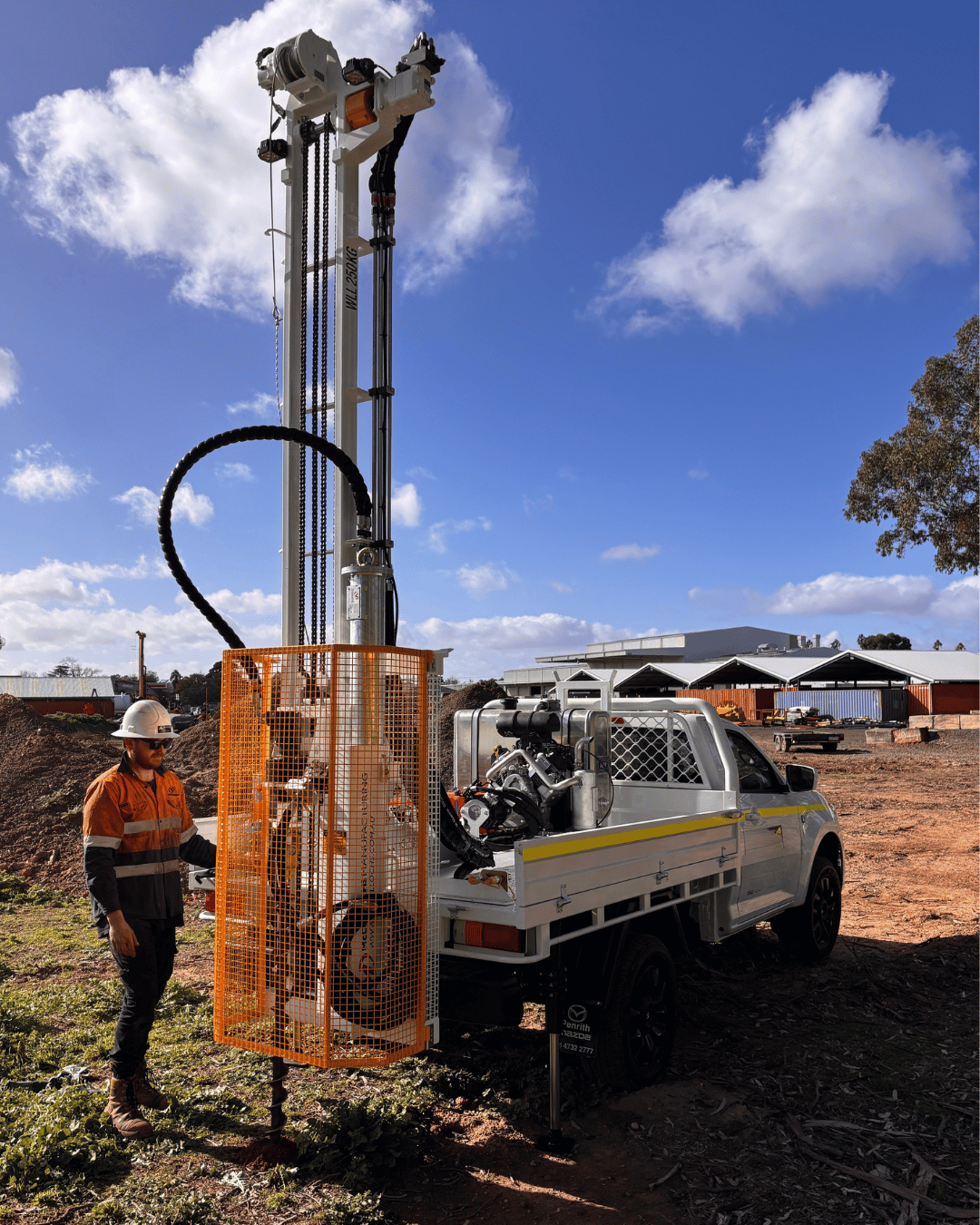

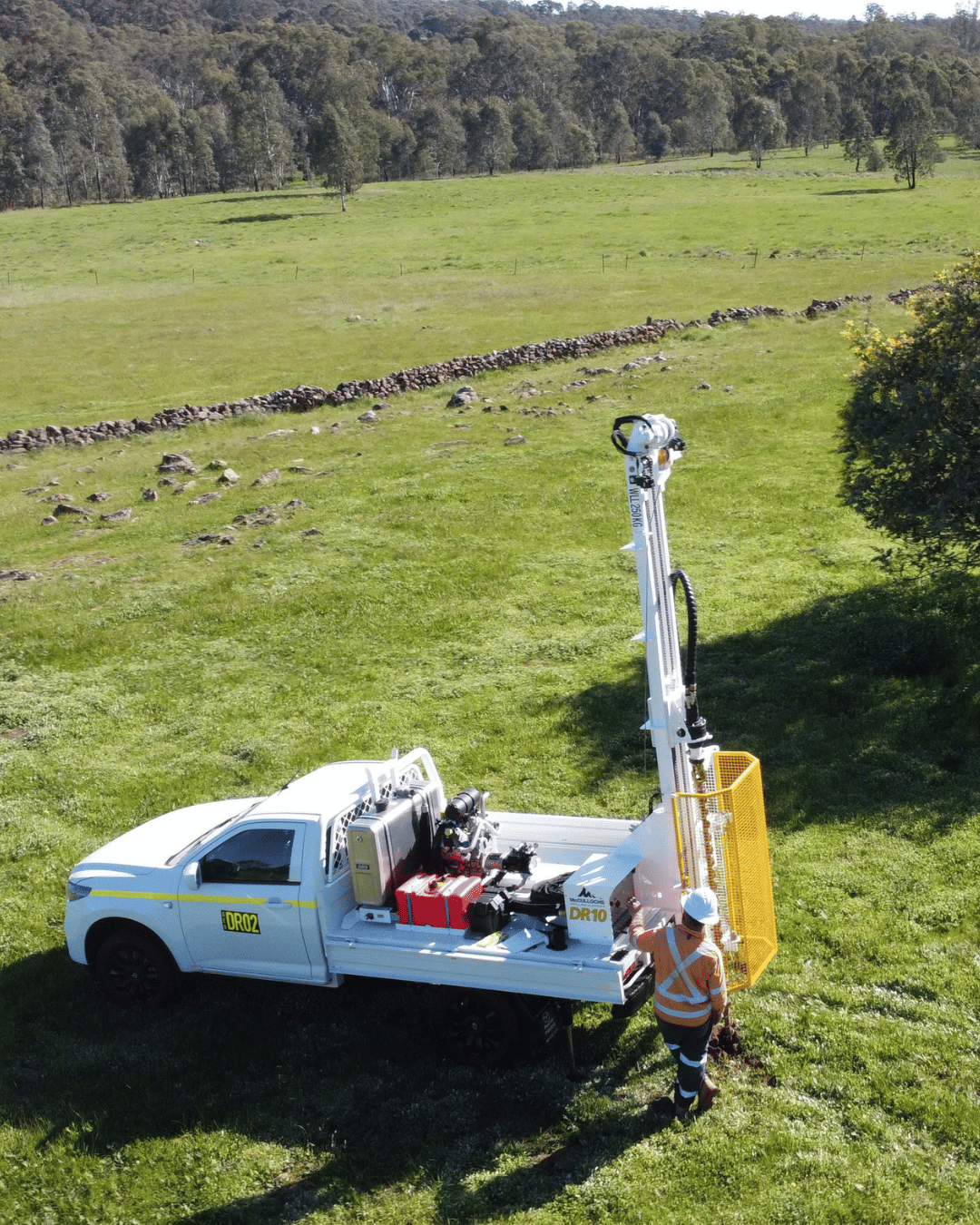

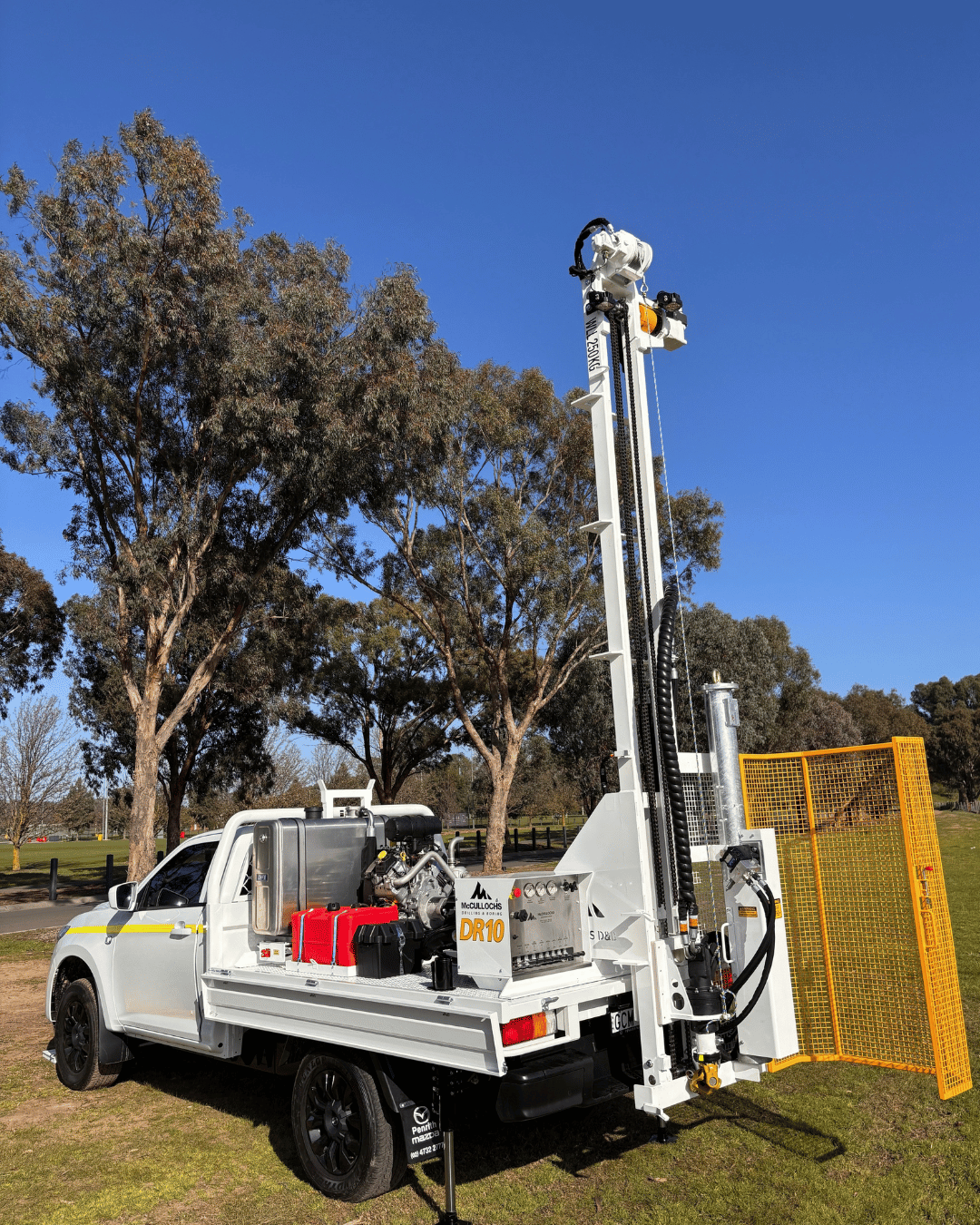

McCulloch DR10 Auger Rig
Functional Description
The McCulloch DR10 Ute/Trailer Mount Auger Rig is a high-mobility drilling solution designed to deliver professional grade power in a compact, vehicle-integrated package. Driven by a high-performance petrol engine and precision hydraulics, the system provides the reliable torque and pull back necessary for demanding soil conditions and geotechnical tasks. The inclusion of an integrated winch and mechanical chain feed simplifies material handling, significantly reducing manual labor while increasing onsite efficiency.
Basic Specs
Engine: Kohler CH940 32HP Petrol Engine
Hydraulics: Rexroth Pump & Danfoss PVG32 Valving
Rotation: Digga PDX2 High-Torque Auger Drive
Pull Back: 1500KG Pull-Back (Chain Feed)
Winch: Pullmaster PL1 Winch (500KG)
Optional Extras
McCulloch Hydraulic SPT Hammer
- Safety Cage Interlock
- Fitment (vehicle specific)
- Jack Legs (vehicle specific)
Full Spec Sheet
